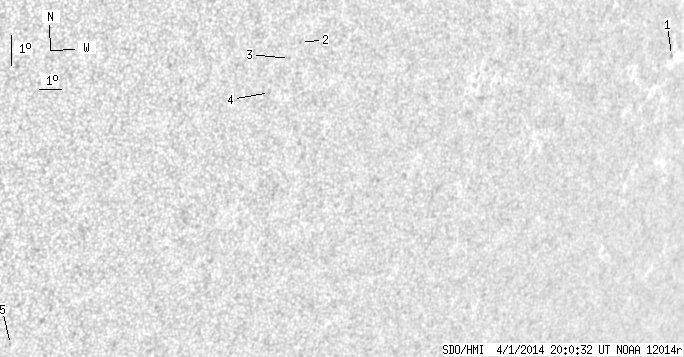

SDO HMI 2014-04-01 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.78 | 0.00 | 4.33 | -20.08 | 120.04 | 47.08 | 247.68 | 0.7364 | -346.8 | -142.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 1.47 | -17.71 | 133.42 | 60.46 | 253.29 | 0.8674 | 609.0 | 480.8 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -18.87 | 115.01 | 42.05 | 249.14 | 0.6806 | -581.0 | -476.0 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -19.39 | 114.70 | 41.75 | 248.30 | 0.6783 | -438.0 | -341.5 | |
| 0.00 | 1.40 | 0.00 | 0.94 | -20.48 | 114.20 | 41.24 | 246.56 | 0.6754 | -663.0 | -490.1 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -29.03 | 106.39 | 33.44 | 230.35 | 0.6281 | -661.0 | -572.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
