SDO HMI 2014-04-01 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.57 | 0.00 | 5.43 | 17.59 | 89.79 | 16.83 | 325.62 | 0.4910 | -393.2 | -440.2 | |
|
previous
or next observation for the same group /

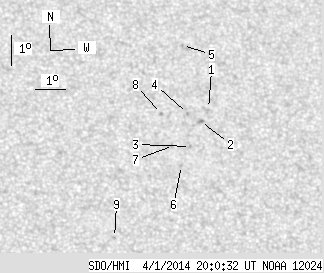

back to the solar disc SDO HMI 2014-04-01 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.30 | 18.34 | 90.79 | 17.84 | 325.00 | 0.5089 | -477.0 | -549.8 | |
| 0.00 | 2.11 | 0.00 | 1.20 | 17.90 | 90.48 | 17.53 | 324.94 | 0.5009 | -867.0 | -742.2 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 17.07 | 90.07 | 17.11 | 324.56 | 0.4871 | -748.0 | -601.6 | |
| 0.00 | 0.96 | 0.00 | 0.55 | 18.15 | 90.07 | 17.12 | 325.86 | 0.5005 | -855.0 | -705.6 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 20.41 | 90.16 | 17.20 | 328.26 | 0.5290 | 745.0 | 634.4 | |
| 0.00 | 1.32 | 0.00 | 0.74 | 16.44 | 89.71 | 16.76 | 324.33 | 0.4763 | -880.0 | -695.4 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 17.08 | 89.51 | 16.56 | 325.46 | 0.4825 | -501.0 | -591.2 | |
| 0.00 | 1.49 | 0.00 | 0.85 | 18.12 | 89.22 | 16.26 | 327.17 | 0.4930 | -770.0 | -632.0 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 14.04 | 87.37 | 14.41 | 325.22 | 0.4251 | 814.0 | 669.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
