SDO HMI 2014-04-01 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.48 | 0.00 | 2.85 | 17.68 | 100.68 | 28.28 | 311.70 | 0.6270 | 578.2 | 482.7 | |
|
previous
or next observation for the same group /

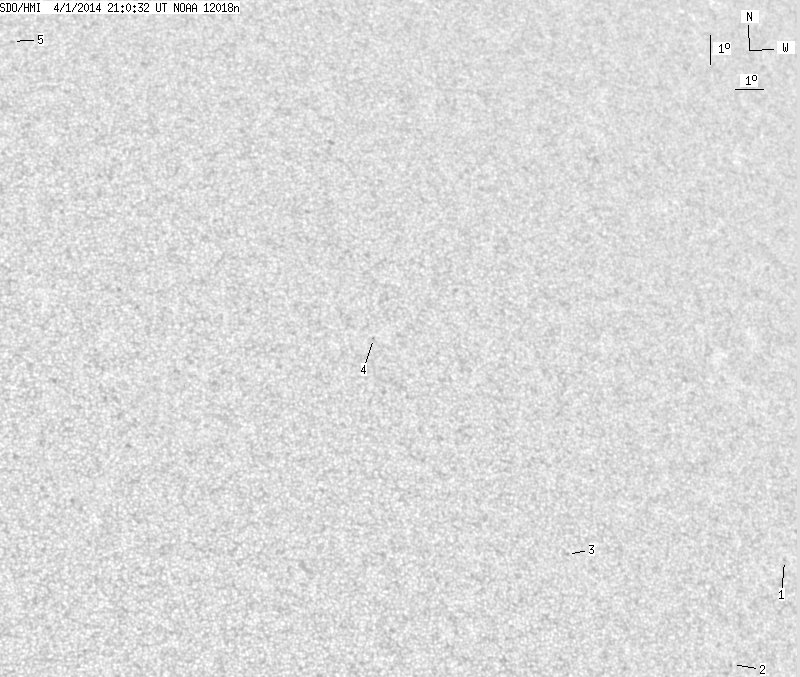

back to the solar disc SDO HMI 2014-04-01 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.66 | 13.39 | 111.15 | 38.75 | 297.44 | 0.6885 | 534.0 | 406.1 | |
| 0.00 | 0.53 | 0.00 | 0.34 | 9.94 | 108.59 | 36.19 | 294.23 | 0.6400 | 483.0 | 537.7 | |
| 0.00 | 1.23 | 0.00 | 0.75 | 13.04 | 102.95 | 30.55 | 302.81 | 0.5915 | 618.0 | 523.7 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 19.73 | 97.14 | 24.74 | 317.67 | 0.5871 | 698.0 | 626.8 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 29.70 | 86.07 | 13.67 | 340.75 | 0.6251 | 558.0 | 391.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
