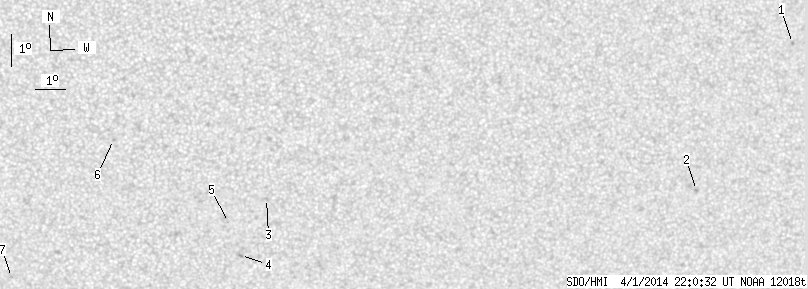

SDO HMI 2014-04-01 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.03 | 0.00 | 4.89 | -26.51 | 80.73 | 8.89 | 199.95 | 0.3975 | -180.6 | -102.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.78 | -21.82 | 94.28 | 22.43 | 232.49 | 0.4484 | 913.0 | 677.6 | |
| 0.00 | 1.58 | 0.00 | 0.88 | -26.56 | 91.71 | 19.86 | 221.07 | 0.4645 | 791.0 | 658.0 | |
| 0.00 | 1.75 | 0.00 | 0.93 | -27.14 | 76.95 | 5.10 | 192.65 | 0.3629 | -57.0 | -148.2 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -28.98 | 76.14 | 4.29 | 189.72 | 0.3896 | -830.0 | -728.4 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -27.92 | 75.69 | 3.84 | 189.21 | 0.3715 | -730.0 | -576.1 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -25.28 | 71.79 | -0.05 | 179.85 | 0.3230 | -632.0 | -603.6 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -29.69 | 68.27 | -3.58 | 172.15 | 0.3991 | -719.0 | -560.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
