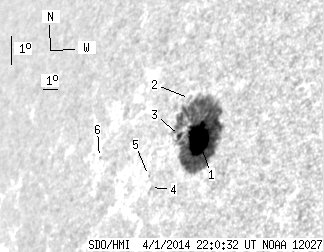

SDO HMI 2014-04-01 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.76 | 248.21 | 42.32 | 252.49 | 12.50 | 13.78 | -58.07 | 71.73 | 0.8745 | -671.5 | -208.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-01 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.57 | 244.26 | 40.02 | 248.20 | 12.47 | 13.88 | -57.97 | 71.73 | 0.8737 | -799.4 | -217.5 | |
| 0.00 | 2.63 | 0.00 | 2.78 | 13.87 | 12.81 | -59.04 | 70.50 | 0.8851 | 152.0 | 137.8 | |
| 2.19 | -1.00 | 2.30 | -1.00 | 12.72 | 12.66 | -59.19 | 71.80 | 0.8838 | -207.3 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.47 | 11.21 | 11.43 | -60.42 | 73.78 | 0.8903 | 518.0 | 474.4 | |
| 0.00 | 0.35 | 0.00 | 0.38 | 11.62 | 11.16 | -60.69 | 73.41 | 0.8931 | 511.0 | 460.5 | |
| 0.00 | 0.53 | 0.00 | 0.66 | 12.56 | 7.48 | -64.37 | 73.30 | 0.9204 | 184.0 | 204.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
