SDO HMI 2014-04-01 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.27 | 466.23 | 84.74 | 385.44 | -11.28 | 17.74 | -53.55 | 99.23 | 0.8001 | -119.9 | -69.2 | |
|
previous
or next observation for the same group /

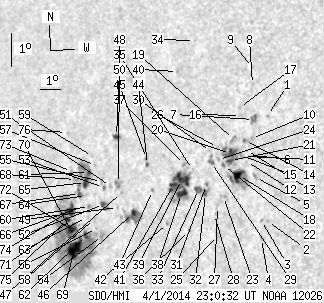

back to the solar disc SDO HMI 2014-04-01 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.75 | -9.23 | 25.06 | -46.24 | 96.56 | 0.7199 | 776.0 | 664.5 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -12.39 | 24.41 | -46.88 | 100.91 | 0.7284 | 753.0 | 655.7 | |
| 0.00 | 1.05 | 0.00 | 0.76 | -12.34 | 24.15 | -47.14 | 100.82 | 0.7314 | 626.0 | 558.2 | |
| 0.00 | 1.58 | 0.00 | 1.15 | -12.87 | 24.02 | -47.27 | 101.55 | 0.7332 | 560.0 | 459.7 | |
| 0.00 | 2.46 | 0.00 | 1.78 | -11.04 | 24.18 | -47.12 | 99.04 | 0.7306 | 694.0 | 660.7 | |
| 0.00 | 1.76 | 0.00 | 1.27 | -10.38 | 24.27 | -47.03 | 98.14 | 0.7294 | 838.0 | 724.2 | |
| 0.00 | 5.27 | 0.00 | 3.79 | -9.30 | 24.43 | -46.87 | 96.66 | 0.7274 | 762.0 | 686.7 | |
| 0.00 | 1.14 | 0.00 | 0.82 | -8.26 | 24.56 | -46.74 | 95.21 | 0.7260 | 600.0 | 493.5 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -7.75 | 24.63 | -46.66 | 94.51 | 0.7253 | 580.0 | 471.1 | |
| 0.00 | 1.05 | 0.00 | 0.76 | -9.86 | 24.23 | -47.06 | 97.42 | 0.7297 | 820.0 | 708.3 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -10.38 | 24.00 | -47.30 | 98.14 | 0.7326 | 767.0 | 708.8 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -10.53 | 23.88 | -47.42 | 98.33 | 0.7340 | 448.0 | 466.0 | |
| 0.00 | 0.70 | 0.00 | 0.51 | -10.20 | 23.94 | -47.35 | 97.89 | 0.7332 | 745.0 | 674.2 | |
| 0.44 | 2.46 | 0.32 | 1.78 | -9.89 | 23.91 | -47.38 | 97.47 | 0.7335 | 771.6 | 663.1 | |
| 0.00 | 1.76 | 0.00 | 1.28 | -10.33 | 23.69 | -47.61 | 98.06 | 0.7361 | 794.0 | 724.1 | |
| 0.00 | 1.67 | 0.00 | 1.21 | -9.13 | 23.87 | -47.42 | 96.43 | 0.7340 | 529.0 | 418.3 | |
| 0.00 | 1.40 | 0.00 | 1.02 | -8.89 | 23.87 | -47.43 | 96.10 | 0.7340 | 469.0 | 379.1 | |
| 8.42 | 28.87 | 6.17 | 21.16 | -10.91 | 23.43 | -47.86 | 98.85 | 0.7392 | 922.6 | 503.5 | |
| 0.00 | 3.95 | 0.00 | 2.89 | -9.82 | 23.43 | -47.87 | 97.37 | 0.7391 | 477.0 | 467.3 | |
| 6.32 | 24.92 | 4.65 | 18.35 | -10.23 | 23.21 | -48.09 | 97.92 | 0.7417 | 733.3 | 545.4 | |
| 2.54 | -20.00 | 1.87 | -20.00 | -10.44 | 23.17 | -48.13 | 98.20 | 0.7422 | 773.7 | 999999 | |
| 0.53 | -20.00 | 0.39 | -20.00 | -10.56 | 22.82 | -48.48 | 98.36 | 0.7462 | 436.2 | 999999 | |
| 0.00 | 2.11 | 0.00 | 1.57 | -11.48 | 22.61 | -48.68 | 99.59 | 0.7488 | 488.0 | 395.6 | |
| 0.00 | 1.23 | 0.00 | 0.91 | -10.36 | 22.63 | -48.67 | 98.09 | 0.7484 | 415.0 | 367.7 | |
| 0.00 | 1.93 | 0.00 | 1.45 | -12.62 | 22.05 | -49.25 | 101.08 | 0.7556 | 463.0 | 575.5 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -10.00 | 22.66 | -48.64 | 97.60 | 0.7480 | 363.0 | 276.7 | |
| 0.00 | 2.19 | 0.00 | 1.64 | -11.75 | 22.27 | -49.03 | 99.94 | 0.7528 | -606.0 | -429.0 | |
| 0.00 | 0.61 | 0.00 | 0.46 | -11.98 | 22.07 | -49.23 | 100.23 | 0.7551 | -431.0 | -407.4 | |
| 1.05 | 5.18 | 0.79 | 3.88 | -10.42 | 22.29 | -49.01 | 98.17 | 0.7522 | 424.2 | 274.7 | |
| 0.00 | 1.67 | 0.00 | 1.25 | -10.09 | 22.31 | -48.98 | 97.73 | 0.7520 | 297.0 | 229.6 | |
| 0.44 | 11.32 | 0.33 | 8.58 | -11.06 | 21.91 | -49.38 | 99.00 | 0.7566 | 627.4 | 570.8 | |
| 1.67 | -31.00 | 1.26 | -31.00 | -11.32 | 21.81 | -49.49 | 99.35 | 0.7578 | 761.1 | 999999 | |
| 3.07 | -31.00 | 2.34 | -31.00 | -11.17 | 21.51 | -49.79 | 99.15 | 0.7611 | 549.9 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -6.73 | 22.15 | -49.14 | 93.25 | 0.7547 | 514.0 | 476.7 | |
| 0.00 | 0.88 | 0.00 | 0.67 | -10.55 | 21.37 | -49.93 | 98.33 | 0.7626 | -695.0 | -534.5 | |
| 0.00 | 1.23 | 0.00 | 0.95 | -12.36 | 20.78 | -50.52 | 100.68 | 0.7695 | 485.0 | 392.1 | |
| 0.00 | 1.84 | 0.00 | 1.42 | -10.37 | 21.02 | -50.27 | 98.09 | 0.7664 | 662.0 | 443.0 | |
| 6.23 | 50.54 | 4.82 | 39.12 | -11.22 | 20.68 | -50.61 | 99.20 | 0.7703 | 676.8 | -172.4 | |
| 11.41 | -38.00 | 8.80 | -38.00 | -10.81 | 20.78 | -50.52 | 98.66 | 0.7691 | -521.7 | 999999 | |
| 0.00 | 1.40 | 0.00 | 1.08 | -7.58 | 21.23 | -50.07 | 94.43 | 0.7647 | 537.0 | 465.9 | |
| 2.81 | -38.00 | 2.19 | -38.00 | -10.92 | 20.37 | -50.93 | 98.80 | 0.7737 | -934.5 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.90 | -12.06 | 19.78 | -51.52 | 100.25 | 0.7802 | -347.0 | -410.9 | |
| 0.00 | 1.23 | 0.00 | 0.98 | -11.01 | 19.31 | -51.99 | 98.90 | 0.7851 | 517.0 | 445.1 | |
| 0.79 | 1.84 | 0.63 | 1.47 | -10.22 | 19.25 | -52.04 | 97.89 | 0.7857 | 412.2 | 339.0 | |
| 0.00 | 1.32 | 0.00 | 1.05 | -10.04 | 19.25 | -52.05 | 97.66 | 0.7857 | 555.0 | 472.7 | |
| 2.54 | 18.25 | 2.08 | 14.91 | -11.58 | 18.20 | -53.10 | 99.61 | 0.7968 | -757.1 | -229.6 | |
| 0.00 | 0.61 | 0.00 | 0.51 | -10.93 | 17.76 | -53.54 | 98.80 | 0.8013 | -610.0 | -568.6 | |
| 0.00 | 5.53 | 0.00 | 4.57 | -10.65 | 17.67 | -53.62 | 98.45 | 0.8022 | -809.0 | -659.8 | |
| 0.00 | 0.79 | 0.00 | 0.66 | -11.36 | 17.43 | -53.86 | 99.33 | 0.8046 | -633.0 | -563.4 | |
| 2.28 | 3.86 | 1.87 | 3.17 | -9.25 | 17.91 | -53.39 | 96.69 | 0.7999 | 504.5 | 266.1 | |
| 0.00 | 1.76 | 0.00 | 1.46 | -10.70 | 17.25 | -54.05 | 98.51 | 0.8065 | -723.0 | -557.3 | |
| 1.93 | 6.23 | 1.63 | 5.25 | -11.20 | 16.74 | -54.56 | 99.13 | 0.8116 | -783.0 | -690.8 | |
| 0.70 | 1.93 | 0.59 | 1.62 | -10.70 | 16.88 | -54.42 | 98.51 | 0.8103 | -692.6 | -554.7 | |
| 0.00 | 6.76 | 0.00 | 5.74 | -12.12 | 16.42 | -54.88 | 100.26 | 0.8149 | -610.0 | -425.2 | |
| 0.00 | 1.76 | 0.00 | 1.48 | -10.51 | 16.82 | -54.47 | 98.28 | 0.8108 | -434.0 | -359.5 | |
| 0.00 | 0.70 | 0.00 | 0.60 | -11.88 | 16.17 | -55.13 | 99.96 | 0.8174 | -744.0 | -693.6 | |
| 0.00 | 0.88 | 0.00 | 0.74 | -10.01 | 16.64 | -54.66 | 97.66 | 0.8128 | -622.0 | -576.0 | |
| 0.00 | 0.97 | 0.00 | 0.83 | -11.57 | 16.15 | -55.14 | 99.59 | 0.8175 | -723.0 | -656.9 | |
| 0.00 | 0.88 | 0.00 | 0.74 | -9.73 | 16.55 | -54.75 | 97.32 | 0.8137 | -247.0 | -232.5 | |
| 0.00 | 1.93 | 0.00 | 1.66 | -11.20 | 15.99 | -55.30 | 99.12 | 0.8191 | -752.0 | -707.0 | |
| 2.19 | 25.36 | 1.87 | 21.77 | -10.18 | 16.22 | -55.08 | 97.88 | 0.8169 | -785.2 | -392.0 | |
| 2.72 | 198.67 | 2.36 | 175.84 | -12.04 | 15.57 | -55.72 | 100.15 | 0.8232 | -926.5 | -177.7 | |
| 0.00 | 0.53 | 0.00 | 0.45 | -11.51 | 15.74 | -55.56 | 99.50 | 0.8216 | -559.0 | -560.5 | |
| 0.00 | 1.05 | 0.00 | 0.91 | -10.85 | 15.93 | -55.37 | 98.71 | 0.8197 | -538.0 | -523.5 | |
| 4.65 | -61.00 | 3.99 | -61.00 | -10.46 | 15.98 | -55.31 | 98.23 | 0.8192 | -810.1 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.91 | -11.16 | 15.62 | -55.67 | 99.08 | 0.8227 | -631.0 | -521.8 | |
| 2.46 | 7.46 | 2.13 | 6.47 | -10.76 | 15.57 | -55.72 | 98.60 | 0.8232 | -555.4 | -360.4 | |
| 0.00 | 2.98 | 0.00 | 2.60 | -10.33 | 15.48 | -55.82 | 98.07 | 0.8242 | -252.0 | -115.8 | |
| 16.32 | -62.00 | 14.43 | -62.00 | -12.39 | 14.79 | -56.50 | 100.57 | 0.8307 | -803.7 | 999999 | |
| 1.32 | -62.00 | 1.16 | -62.00 | -12.01 | 14.92 | -56.37 | 100.11 | 0.8295 | -755.5 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.54 | -11.49 | 14.97 | -56.32 | 99.49 | 0.8290 | -637.0 | -572.9 | |
| 10.00 | -62.00 | 8.85 | -62.00 | -11.79 | 14.83 | -56.47 | 99.84 | 0.8304 | -609.1 | 999999 | |
| 0.00 | 1.40 | 0.00 | 1.23 | -10.07 | 15.33 | -55.97 | 97.76 | 0.8257 | -96.0 | -60.4 | |
| 7.90 | -62.00 | 6.96 | -62.00 | -11.22 | 14.95 | -56.35 | 99.16 | 0.8292 | -645.0 | 999999 | |
| 2.54 | -62.00 | 2.26 | -62.00 | -11.47 | 14.70 | -56.59 | 99.46 | 0.8316 | -295.1 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.61 | -8.89 | 15.35 | -55.95 | 96.33 | 0.8258 | -416.0 | -351.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
