SDO HMI 2014-04-01 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.18 | 57.73 | 21.39 | 61.51 | -8.26 | 8.54 | -62.76 | 95.95 | 0.8853 | 332.0 | 88.8 | |
|
previous
or next observation for the same group /

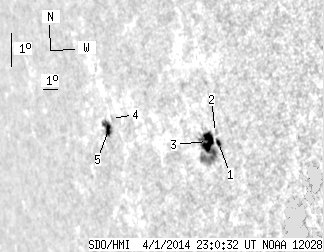

back to the solar disc SDO HMI 2014-04-01 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.11 | 3.25 | 2.08 | 3.20 | -8.64 | 10.89 | -60.41 | 96.23 | 0.8668 | 753.0 | 634.4 | |
| 0.00 | 1.93 | 0.00 | 1.91 | -8.33 | 10.79 | -60.51 | 95.88 | 0.8678 | 630.0 | 465.3 | |
| 13.95 | 40.01 | 14.03 | 40.33 | -8.55 | 10.23 | -61.07 | 96.16 | 0.8725 | 615.3 | 194.2 | |
| 0.00 | 1.40 | 0.00 | 1.77 | -7.20 | 3.86 | -67.44 | 95.07 | 0.9214 | -502.0 | -340.2 | |
| 4.12 | 11.14 | 5.28 | 14.30 | -7.50 | 3.52 | -67.77 | 95.42 | 0.9236 | -485.1 | -282.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
