SDO HMI 2014-04-02 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.57 | 0.00 | 3.52 | -19.62 | 120.04 | 49.29 | 249.15 | 0.7573 | -330.8 | -241.6 | |
|
previous
or next observation for the same group /

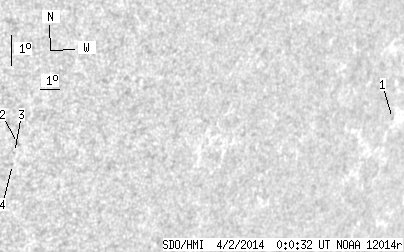

back to the solar disc SDO HMI 2014-04-02 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 1.02 | -17.73 | 133.52 | 62.77 | 253.35 | 0.8859 | 499.0 | 462.0 | |
| 0.00 | 1.93 | 0.00 | 1.34 | -20.17 | 114.55 | 43.80 | 247.75 | 0.7043 | -707.0 | -577.6 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -20.46 | 114.51 | 43.77 | 247.35 | 0.7046 | -600.0 | -551.2 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -20.83 | 114.56 | 43.81 | 246.84 | 0.7061 | -515.0 | -402.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
