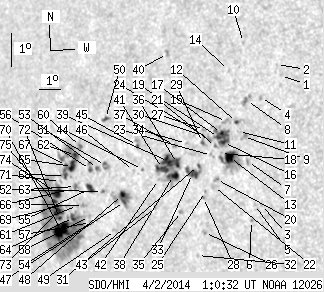

SDO HMI 2014-04-02 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 110.96 | 472.93 | 88.77 | 381.10 | -11.33 | 17.79 | -52.41 | 99.30 | 0.7882 | -139.9 | -56.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.60 | -8.65 | 26.07 | -44.12 | 95.72 | 0.6940 | 649.0 | 561.7 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -8.31 | 25.95 | -44.24 | 95.23 | 0.6956 | 593.0 | 496.1 | |
| 0.00 | 1.14 | 0.00 | 0.80 | -12.43 | 24.54 | -45.65 | 101.05 | 0.7139 | 549.0 | 533.2 | |
| 0.00 | 1.76 | 0.00 | 1.22 | -9.24 | 25.12 | -45.07 | 96.56 | 0.7057 | 693.0 | 596.6 | |
| 0.00 | 1.14 | 0.00 | 0.81 | -12.40 | 24.24 | -45.96 | 101.00 | 0.7175 | 713.0 | 561.8 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -12.87 | 23.99 | -46.20 | 101.63 | 0.7207 | 714.0 | 627.3 | |
| 0.00 | 2.11 | 0.00 | 1.49 | -11.10 | 24.21 | -45.98 | 99.17 | 0.7171 | 744.0 | 655.5 | |
| 0.00 | 5.53 | 0.00 | 3.90 | -9.28 | 24.51 | -45.68 | 96.62 | 0.7132 | 797.0 | 661.8 | |
| 0.00 | 3.34 | 0.00 | 2.36 | -10.34 | 24.19 | -46.01 | 98.11 | 0.7172 | 707.0 | 720.6 | |
| 0.00 | 1.23 | 0.00 | 0.86 | -7.54 | 24.65 | -45.55 | 94.17 | 0.7119 | 516.0 | 426.6 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -10.17 | 24.00 | -46.20 | 97.87 | 0.7195 | 466.0 | 564.3 | |
| 0.79 | 2.72 | 0.56 | 1.93 | -9.90 | 23.96 | -46.23 | 97.49 | 0.7199 | 764.1 | 683.7 | |
| 8.51 | 29.05 | 6.11 | 20.84 | -10.91 | 23.45 | -46.74 | 98.89 | 0.7261 | 903.0 | 493.2 | |
| 0.00 | 0.61 | 0.00 | 0.44 | -8.32 | 23.88 | -46.32 | 95.29 | 0.7210 | 407.0 | 354.7 | |
| 0.00 | 4.21 | 0.00 | 3.02 | -9.83 | 23.53 | -46.66 | 97.39 | 0.7250 | 607.0 | 493.2 | |
| 1.93 | 21.68 | 1.39 | 15.62 | -10.44 | 23.28 | -46.92 | 98.24 | 0.7281 | 851.1 | 602.7 | |
| 1.67 | -16.00 | 1.20 | -16.00 | -10.17 | 23.24 | -46.95 | 97.86 | 0.7284 | 707.1 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.89 | -10.76 | 23.08 | -47.12 | 98.67 | 0.7305 | 501.0 | 403.1 | |
| 1.32 | -16.00 | 0.95 | -16.00 | -10.28 | 23.09 | -47.11 | 98.00 | 0.7303 | 591.9 | 999999 | |
| 0.00 | 2.37 | 0.00 | 1.72 | -11.52 | 22.73 | -47.46 | 99.69 | 0.7348 | 614.0 | 443.1 | |
| 0.00 | 1.84 | 0.00 | 1.34 | -10.53 | 22.90 | -47.29 | 98.35 | 0.7325 | 514.0 | 405.5 | |
| 0.00 | 2.55 | 0.00 | 1.86 | -11.72 | 22.55 | -47.64 | 99.95 | 0.7369 | -188.0 | -173.1 | |
| 0.00 | 2.28 | 0.00 | 1.66 | -10.79 | 22.67 | -47.53 | 98.69 | 0.7353 | 356.0 | 304.9 | |
| 0.00 | 2.28 | 0.00 | 1.66 | -10.30 | 22.67 | -47.52 | 98.03 | 0.7351 | 618.0 | 420.1 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -11.84 | 22.16 | -48.04 | 100.10 | 0.7415 | -601.0 | -526.6 | |
| 0.00 | 1.40 | 0.00 | 1.04 | -13.05 | 21.81 | -48.39 | 101.72 | 0.7461 | 620.0 | 501.9 | |
| 0.00 | 1.84 | 0.00 | 1.35 | -9.99 | 22.51 | -47.68 | 97.60 | 0.7370 | 451.0 | 343.8 | |
| 0.00 | 1.14 | 0.00 | 0.84 | -12.01 | 22.02 | -48.17 | 100.32 | 0.7431 | -463.0 | -405.6 | |
| 0.61 | 3.16 | 0.45 | 2.31 | -10.37 | 22.34 | -47.85 | 98.11 | 0.7390 | 393.6 | 319.6 | |
| 0.00 | 1.14 | 0.00 | 0.84 | -10.16 | 22.39 | -47.81 | 97.83 | 0.7385 | 282.0 | 233.7 | |
| 0.53 | 13.61 | 0.39 | 10.08 | -11.04 | 22.02 | -48.18 | 99.01 | 0.7429 | 611.3 | 491.5 | |
| 0.00 | 1.05 | 0.00 | 0.79 | -13.71 | 21.30 | -48.90 | 102.56 | 0.7523 | 500.0 | 335.2 | |
| 6.32 | -31.00 | 4.69 | -31.00 | -11.25 | 21.69 | -48.50 | 99.29 | 0.7467 | 663.6 | 999999 | |
| 0.00 | 0.35 | 0.00 | 0.26 | -10.34 | 21.62 | -48.58 | 98.06 | 0.7474 | 514.0 | 504.5 | |
| 0.00 | 2.19 | 0.00 | 1.65 | -12.34 | 20.91 | -49.28 | 100.71 | 0.7558 | 522.0 | 399.0 | |
| 4.04 | 47.49 | 3.03 | 35.95 | -10.90 | 21.07 | -49.12 | 98.80 | 0.7536 | -373.8 | -64.3 | |
| 0.00 | 1.49 | 0.00 | 1.12 | -10.35 | 21.05 | -49.14 | 98.07 | 0.7538 | 678.0 | 481.5 | |
| 6.50 | -36.00 | 4.90 | -36.00 | -11.24 | 20.81 | -49.39 | 99.25 | 0.7567 | 659.5 | 999999 | |
| 9.83 | -36.00 | 7.44 | -36.00 | -10.80 | 20.67 | -49.52 | 98.67 | 0.7581 | -480.7 | 999999 | |
| 0.00 | 2.90 | 0.00 | 2.17 | -7.58 | 21.24 | -48.96 | 94.39 | 0.7521 | 524.0 | 394.4 | |
| 6.23 | -36.00 | 4.75 | -36.00 | -10.98 | 20.35 | -49.85 | 98.90 | 0.7618 | -520.8 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.54 | -11.30 | 20.08 | -50.11 | 99.31 | 0.7648 | -239.0 | -205.5 | |
| 0.00 | 1.49 | 0.00 | 1.15 | -12.12 | 19.73 | -50.46 | 100.37 | 0.7689 | -351.0 | -396.1 | |
| 0.00 | 0.97 | 0.00 | 0.75 | -10.93 | 19.40 | -50.80 | 98.82 | 0.7722 | 459.0 | 454.0 | |
| 0.70 | 3.86 | 0.55 | 3.00 | -10.20 | 19.32 | -50.87 | 97.87 | 0.7730 | 534.1 | 419.0 | |
| 0.00 | 0.79 | 0.00 | 0.62 | -10.92 | 18.96 | -51.23 | 98.81 | 0.7770 | 291.0 | 216.9 | |
| 1.32 | 18.87 | 1.05 | 15.03 | -11.81 | 18.29 | -51.91 | 99.93 | 0.7843 | 162.7 | -162.8 | |
| 3.07 | -47.00 | 2.44 | -47.00 | -11.59 | 18.25 | -51.95 | 99.65 | 0.7847 | -669.2 | 999999 | |
| 0.00 | 2.46 | 0.00 | 1.98 | -12.63 | 17.60 | -52.59 | 100.95 | 0.7918 | 146.0 | 175.9 | |
| 1.40 | 3.07 | 1.12 | 2.46 | -9.26 | 17.96 | -52.24 | 96.68 | 0.7879 | 607.8 | 434.7 | |
| 0.00 | 4.74 | 0.00 | 3.82 | -10.65 | 17.63 | -52.56 | 98.45 | 0.7911 | -849.0 | -693.1 | |
| 0.00 | 1.40 | 0.00 | 1.14 | -11.41 | 17.28 | -52.91 | 99.41 | 0.7948 | -768.0 | -710.3 | |
| 0.70 | 2.55 | 0.57 | 2.07 | -10.71 | 17.21 | -52.98 | 98.52 | 0.7955 | -673.2 | -523.4 | |
| 0.00 | 1.05 | 0.00 | 0.87 | -12.21 | 16.70 | -53.50 | 100.40 | 0.8010 | 97.0 | 85.2 | |
| 3.95 | 5.97 | 3.25 | 4.91 | -11.27 | 16.71 | -53.49 | 99.22 | 0.8008 | -798.6 | -634.8 | |
| 1.14 | 4.48 | 0.94 | 3.67 | -10.71 | 16.86 | -53.34 | 98.52 | 0.7992 | -782.3 | -567.1 | |
| 0.00 | 2.55 | 0.00 | 2.11 | -12.28 | 16.42 | -53.78 | 100.48 | 0.8039 | -495.0 | -427.9 | |
| 0.00 | 1.40 | 0.00 | 1.16 | -12.10 | 16.42 | -53.77 | 100.25 | 0.8038 | -586.0 | -537.8 | |
| 0.00 | 2.63 | 0.00 | 2.19 | -11.74 | 16.21 | -53.98 | 99.81 | 0.8059 | -807.0 | -705.0 | |
| 0.79 | 2.72 | 0.65 | 2.25 | -9.98 | 16.52 | -53.67 | 97.61 | 0.8027 | -776.9 | -688.1 | |
| 0.00 | 1.23 | 0.00 | 1.03 | -11.71 | 15.90 | -54.29 | 99.77 | 0.8090 | -727.0 | -678.1 | |
| 2.90 | 38.71 | 2.41 | 32.53 | -10.22 | 16.20 | -53.99 | 97.92 | 0.8060 | -761.8 | -347.8 | |
| 0.79 | 4.48 | 0.66 | 3.74 | -11.14 | 15.96 | -54.23 | 99.06 | 0.8084 | -760.0 | -644.5 | |
| 2.63 | 195.92 | 2.23 | 168.63 | -12.05 | 15.59 | -54.60 | 100.18 | 0.8122 | -937.0 | -196.6 | |
| 5.71 | -62.00 | 4.78 | -62.00 | -10.53 | 15.97 | -54.23 | 98.31 | 0.8084 | -782.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.81 | -11.20 | 15.63 | -54.57 | 99.13 | 0.8118 | -604.0 | -530.3 | |
| 0.53 | -62.00 | 0.44 | -62.00 | -10.48 | 15.67 | -54.53 | 98.24 | 0.8114 | -370.5 | 999999 | |
| 1.76 | -62.00 | 1.48 | -62.00 | -10.77 | 15.53 | -54.66 | 98.60 | 0.8127 | -573.7 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.37 | -11.62 | 15.24 | -54.96 | 99.65 | 0.8156 | -495.0 | -503.6 | |
| 18.52 | -64.00 | 15.93 | -64.00 | -12.38 | 14.84 | -55.35 | 100.57 | 0.8196 | -787.7 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.97 | -10.92 | 15.23 | -54.97 | 98.79 | 0.8158 | -361.0 | -290.6 | |
| 1.14 | -64.00 | 0.98 | -64.00 | -11.98 | 14.86 | -55.34 | 100.09 | 0.8194 | -699.7 | 999999 | |
| 6.23 | -64.00 | 5.36 | -64.00 | -11.80 | 14.86 | -55.33 | 99.87 | 0.8194 | -701.6 | 999999 | |
| 7.29 | -64.00 | 6.25 | -64.00 | -11.23 | 14.92 | -55.27 | 99.17 | 0.8187 | -690.3 | 999999 | |
| 2.11 | -64.00 | 1.82 | -64.00 | -11.48 | 14.74 | -55.45 | 99.48 | 0.8206 | -470.4 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
