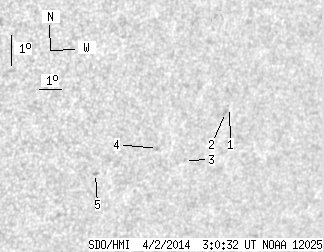

SDO HMI 2014-04-02 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.17 | 0.00 | 5.91 | -24.25 | 114.36 | 45.26 | 242.56 | 0.7318 | -481.0 | -440.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.39 | -23.02 | 116.32 | 47.23 | 244.81 | 0.7489 | -292.0 | -383.8 | |
| 0.00 | 2.81 | 0.00 | 2.09 | -23.19 | 116.21 | 47.11 | 244.56 | 0.7481 | -615.0 | -457.0 | |
| 0.00 | 1.40 | 0.00 | 1.03 | -24.82 | 115.01 | 45.91 | 242.08 | 0.7402 | -260.0 | -297.6 | |
| 0.00 | 1.32 | 0.00 | 0.94 | -24.54 | 113.61 | 44.52 | 241.99 | 0.7247 | -573.0 | -457.3 | |
| 0.00 | 2.11 | 0.00 | 1.46 | -25.52 | 111.21 | 42.12 | 239.80 | 0.7026 | -665.0 | -522.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
