SDO HMI 2014-04-02 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.63 | 14.30 | 4.08 | 21.73 | 10.40 | 359.89 | -69.20 | 76.61 | 0.9465 | 51.0 | 51.6 | |
|
previous
or next observation for the same group /

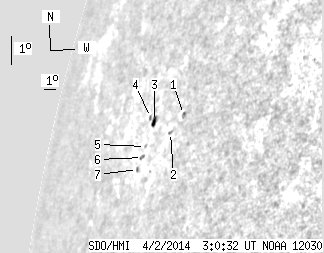

back to the solar disc SDO HMI 2014-04-02 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.28 | 0.00 | 3.14 | 10.77 | 2.03 | -67.06 | 75.80 | 0.9348 | -409.0 | -279.5 | |
| 0.00 | 1.84 | 0.00 | 2.63 | 10.30 | 1.19 | -67.90 | 76.46 | 0.9392 | -380.0 | -280.0 | |
| 2.63 | 4.30 | 4.08 | 6.66 | 10.82 | 359.58 | -69.51 | 76.24 | 0.9487 | 58.5 | 46.8 | |
| 0.00 | 1.14 | 0.00 | 1.81 | 10.99 | 359.13 | -69.96 | 76.14 | 0.9512 | 37.0 | 110.8 | |
| 0.00 | 1.23 | 0.00 | 1.93 | 10.09 | 359.15 | -69.95 | 77.07 | 0.9503 | 408.0 | 355.6 | |
| 0.00 | 2.37 | 0.00 | 3.74 | 9.76 | 359.03 | -70.06 | 77.43 | 0.9506 | 544.0 | 384.6 | |
| 0.00 | 1.14 | 0.00 | 1.82 | 9.42 | 358.74 | -70.36 | 77.84 | 0.9518 | 76.0 | 44.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
