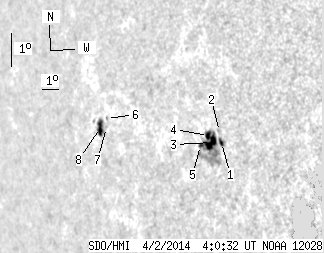

SDO HMI 2014-04-02 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.39 | 67.70 | 22.28 | 65.39 | -8.34 | 8.98 | -59.57 | 95.87 | 0.8587 | 205.0 | 200.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.84 | 54.18 | 1.68 | 50.34 | -8.66 | 10.89 | -57.66 | 96.13 | 0.8422 | 755.5 | 267.2 | |
| 0.00 | 2.11 | 0.00 | 1.93 | -8.32 | 10.85 | -57.69 | 95.74 | 0.8426 | 253.0 | 317.0 | |
| 9.57 | -1.00 | 8.88 | -1.00 | -8.61 | 10.32 | -58.22 | 96.10 | 0.8474 | 717.3 | 999999 | |
| 3.25 | -1.00 | 3.02 | -1.00 | -8.38 | 10.20 | -58.34 | 95.84 | 0.8486 | 546.5 | 999999 | |
| 0.97 | -1.00 | 0.91 | -1.00 | -8.63 | 9.67 | -58.87 | 96.16 | 0.8533 | 158.9 | 999999 | |
| 0.00 | 1.05 | 0.00 | 1.19 | -7.25 | 3.97 | -64.57 | 94.92 | 0.9011 | -365.0 | -289.8 | |
| 0.00 | 0.61 | 0.00 | 0.70 | -7.51 | 3.90 | -64.65 | 95.22 | 0.9015 | -393.0 | -323.4 | |
| 6.76 | 9.75 | 7.79 | 11.23 | -7.47 | 3.48 | -65.07 | 95.20 | 0.9046 | -481.0 | -282.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
