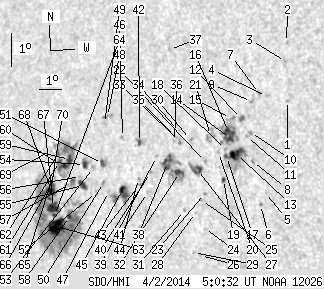

SDO HMI 2014-04-02 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.06 | 506.63 | 82.02 | 391.55 | -11.34 | 17.52 | -50.47 | 99.37 | 0.7675 | -111.9 | -95.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.70 | -9.46 | 26.03 | -41.97 | 96.95 | 0.6669 | 679.0 | 585.0 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -7.73 | 26.22 | -41.77 | 94.34 | 0.6643 | 591.0 | 507.8 | |
| 0.00 | 2.37 | 0.00 | 1.57 | -8.29 | 26.11 | -41.89 | 95.19 | 0.6657 | 647.0 | 435.6 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -9.28 | 25.19 | -42.81 | 96.66 | 0.6776 | 765.0 | 661.7 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -12.14 | 24.63 | -43.36 | 100.84 | 0.6858 | 679.0 | 573.3 | |
| 0.00 | 1.05 | 0.00 | 0.72 | -12.48 | 24.35 | -43.65 | 101.32 | 0.6896 | 717.0 | 622.4 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -9.16 | 24.91 | -43.08 | 96.49 | 0.6810 | 584.0 | 569.3 | |
| 0.00 | 1.32 | 0.00 | 0.90 | -11.17 | 24.27 | -43.72 | 99.41 | 0.6897 | 706.0 | 617.7 | |
| 0.00 | 1.93 | 0.00 | 1.31 | -9.38 | 24.55 | -43.45 | 96.80 | 0.6857 | 873.0 | 731.4 | |
| 0.00 | 1.58 | 0.00 | 1.08 | -10.30 | 24.35 | -43.65 | 98.14 | 0.6883 | 795.0 | 715.6 | |
| 0.00 | 1.05 | 0.00 | 0.72 | -10.40 | 24.16 | -43.84 | 98.29 | 0.6907 | 844.0 | 705.8 | |
| 0.97 | 3.34 | 0.66 | 2.28 | -9.85 | 24.05 | -43.95 | 97.48 | 0.6920 | 785.8 | 701.1 | |
| 9.57 | 33.55 | 6.60 | 23.14 | -10.91 | 23.64 | -44.36 | 98.99 | 0.6974 | 919.2 | 382.9 | |
| 5.36 | 27.75 | 3.70 | 19.18 | -10.41 | 23.48 | -44.52 | 98.27 | 0.6992 | 845.5 | 580.3 | |
| 0.00 | 2.28 | 0.00 | 1.57 | -9.81 | 23.58 | -44.41 | 97.42 | 0.6978 | 489.0 | 458.3 | |
| 5.36 | -14.00 | 3.70 | -14.00 | -10.20 | 23.43 | -44.57 | 97.96 | 0.6997 | 762.1 | 999999 | |
| 0.97 | -13.00 | 0.67 | -13.00 | -10.93 | 23.21 | -44.79 | 99.01 | 0.7027 | 521.0 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.97 | -10.72 | 23.20 | -44.79 | 98.71 | 0.7027 | 541.0 | 491.8 | |
| 1.14 | 2.55 | 0.80 | 1.78 | -11.61 | 22.94 | -45.06 | 99.96 | 0.7063 | 458.2 | 292.8 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -10.79 | 22.89 | -45.11 | 98.79 | 0.7065 | 490.0 | 444.2 | |
| 0.00 | 8.78 | 0.00 | 6.15 | -10.25 | 22.64 | -45.36 | 98.02 | 0.7094 | 395.0 | 399.1 | |
| 0.00 | 1.23 | 0.00 | 0.87 | -11.01 | 22.28 | -45.72 | 99.08 | 0.7140 | 558.0 | 565.1 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -11.96 | 22.03 | -45.97 | 100.40 | 0.7174 | -692.0 | -572.8 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -13.01 | 21.79 | -46.21 | 101.84 | 0.7210 | 655.0 | 605.6 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -12.16 | 21.85 | -46.14 | 100.66 | 0.7196 | -314.0 | -320.9 | |
| 0.00 | 0.70 | 0.00 | 0.50 | -13.80 | 21.41 | -46.59 | 102.90 | 0.7261 | 468.0 | 441.0 | |
| 5.18 | 10.19 | 3.68 | 7.24 | -11.22 | 21.88 | -46.12 | 99.36 | 0.7188 | 664.1 | 466.7 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -12.50 | 21.51 | -46.49 | 101.11 | 0.7239 | 582.0 | 501.7 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -13.68 | 21.12 | -46.88 | 102.71 | 0.7293 | 490.0 | 390.7 | |
| 0.00 | 1.41 | 0.00 | 1.00 | -10.30 | 21.76 | -46.24 | 98.07 | 0.7201 | 708.0 | 473.9 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -12.40 | 21.04 | -46.96 | 100.94 | 0.7294 | 534.0 | 487.1 | |
| 4.04 | 34.69 | 2.91 | 25.11 | -11.25 | 21.07 | -46.93 | 99.36 | 0.7284 | 766.7 | 89.2 | |
| 0.00 | 1.84 | 0.00 | 1.32 | -10.32 | 21.26 | -46.74 | 98.09 | 0.7259 | 666.0 | 510.8 | |
| 0.00 | 0.61 | 0.00 | 0.44 | -9.99 | 21.28 | -46.72 | 97.63 | 0.7257 | 562.0 | 515.3 | |
| 0.00 | 1.49 | 0.00 | 1.07 | -10.16 | 21.12 | -46.88 | 97.86 | 0.7277 | 606.0 | 445.0 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -10.31 | 21.04 | -46.96 | 98.06 | 0.7285 | 413.0 | 314.0 | |
| 0.00 | 1.23 | 0.00 | 0.88 | -7.55 | 21.29 | -46.71 | 94.25 | 0.7259 | 511.0 | 414.7 | |
| 7.29 | -32.00 | 5.30 | -32.00 | -10.90 | 20.60 | -47.39 | 98.87 | 0.7338 | -358.8 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.90 | -10.69 | 20.15 | -47.85 | 98.56 | 0.7390 | -608.0 | -438.4 | |
| 0.00 | 1.05 | 0.00 | 0.78 | -11.14 | 19.78 | -48.22 | 99.17 | 0.7435 | -540.0 | -463.2 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -11.72 | 19.50 | -48.49 | 99.94 | 0.7468 | 339.0 | 234.0 | |
| 1.49 | 4.30 | 1.11 | 3.19 | -10.20 | 19.47 | -48.53 | 97.90 | 0.7468 | 666.4 | 367.9 | |
| 0.00 | 1.76 | 0.00 | 1.31 | -11.45 | 19.19 | -48.80 | 99.57 | 0.7502 | -803.0 | -626.5 | |
| 0.00 | 1.05 | 0.00 | 0.79 | -11.27 | 19.19 | -48.81 | 99.33 | 0.7502 | -703.0 | -611.9 | |
| 3.25 | 20.11 | 2.46 | 15.29 | -11.54 | 18.37 | -49.62 | 99.65 | 0.7594 | -774.2 | -269.8 | |
| 0.00 | 1.49 | 0.00 | 1.12 | -9.99 | 18.72 | -49.28 | 97.61 | 0.7553 | 363.0 | 324.9 | |
| 0.00 | 1.05 | 0.00 | 0.81 | -11.54 | 17.70 | -50.29 | 99.64 | 0.7669 | -669.0 | -590.7 | |
| 0.00 | 4.13 | 0.00 | 3.14 | -9.30 | 18.15 | -49.84 | 96.71 | 0.7617 | 527.0 | 403.3 | |
| 0.00 | 1.58 | 0.00 | 1.21 | -9.50 | 17.97 | -50.03 | 96.97 | 0.7637 | -181.0 | -166.6 | |
| 0.00 | 1.23 | 0.00 | 0.95 | -11.25 | 17.53 | -50.46 | 99.26 | 0.7687 | -701.0 | -613.6 | |
| 1.76 | 4.65 | 1.35 | 3.58 | -10.68 | 17.62 | -50.38 | 98.52 | 0.7676 | -816.5 | -612.2 | |
| 0.00 | 1.14 | 0.00 | 0.89 | -11.52 | 17.13 | -50.87 | 99.60 | 0.7732 | -595.0 | -550.6 | |
| 0.00 | 1.84 | 0.00 | 1.43 | -10.76 | 17.17 | -50.83 | 98.62 | 0.7726 | -725.0 | -663.9 | |
| 3.25 | 4.92 | 2.54 | 3.85 | -10.64 | 16.76 | -51.24 | 98.45 | 0.7771 | -766.8 | -522.2 | |
| 4.39 | 5.97 | 3.46 | 4.70 | -11.25 | 16.51 | -51.49 | 99.24 | 0.7798 | -843.8 | -670.2 | |
| 0.00 | 1.14 | 0.00 | 0.90 | -10.98 | 16.48 | -51.52 | 98.88 | 0.7801 | -496.0 | -487.8 | |
| 0.00 | 6.06 | 0.00 | 4.83 | -11.14 | 15.94 | -52.06 | 99.09 | 0.7859 | -851.0 | -639.3 | |
| 1.67 | 234.49 | 1.34 | 191.31 | -12.12 | 15.63 | -52.37 | 100.33 | 0.7893 | -964.6 | -220.1 | |
| 4.39 | 48.92 | 3.49 | 39.07 | -10.42 | 16.07 | -51.93 | 98.17 | 0.7845 | -853.5 | -449.5 | |
| 4.74 | -59.00 | 3.80 | -59.00 | -10.60 | 15.68 | -52.32 | 98.40 | 0.7886 | -650.2 | 999999 | |
| 1.49 | -59.00 | 1.20 | -59.00 | -10.44 | 15.56 | -52.43 | 98.20 | 0.7898 | -423.9 | 999999 | |
| 0.88 | -59.00 | 0.71 | -59.00 | -10.20 | 15.57 | -52.43 | 97.89 | 0.7898 | -333.5 | 999999 | |
| 20.29 | -58.00 | 16.56 | -58.00 | -12.36 | 14.90 | -53.10 | 100.61 | 0.7970 | -821.3 | 999999 | |
| 1.14 | -58.00 | 0.93 | -58.00 | -12.02 | 14.89 | -53.11 | 100.19 | 0.7970 | -620.8 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.85 | -10.71 | 15.24 | -52.75 | 98.54 | 0.7932 | -155.0 | -79.4 | |
| 0.00 | 1.14 | 0.00 | 0.93 | -10.89 | 15.20 | -52.80 | 98.77 | 0.7937 | -388.0 | -253.2 | |
| 9.22 | -58.00 | 7.53 | -58.00 | -11.78 | 14.91 | -53.09 | 99.88 | 0.7968 | -729.7 | 999999 | |
| 7.90 | -58.00 | 6.44 | -58.00 | -11.27 | 14.95 | -53.05 | 99.24 | 0.7963 | -720.9 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.92 | -10.08 | 15.25 | -52.75 | 97.74 | 0.7932 | -154.0 | -45.5 | |
| 1.32 | -58.00 | 1.08 | -58.00 | -11.49 | 14.78 | -53.21 | 99.52 | 0.7980 | -566.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
