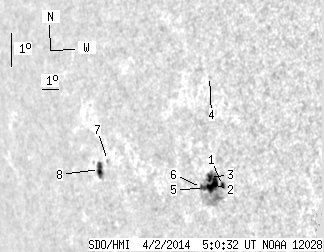

SDO HMI 2014-04-02 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.03 | 62.28 | 24.23 | 59.14 | -8.30 | 8.99 | -59.00 | 95.80 | 0.8537 | 269.7 | 180.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.67 | 51.47 | 1.50 | 47.16 | -8.67 | 10.84 | -57.16 | 96.13 | 0.8375 | 768.2 | 250.1 | |
| 11.68 | -1.00 | 10.68 | -1.00 | -8.59 | 10.29 | -57.70 | 96.05 | 0.8426 | 687.8 | 999999 | |
| 3.51 | -1.00 | 3.22 | -1.00 | -8.37 | 10.18 | -57.82 | 95.80 | 0.8438 | 553.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.88 | -5.37 | 10.75 | -57.25 | 92.19 | 0.8401 | 191.0 | 198.9 | |
| 1.05 | -1.00 | 0.98 | -1.00 | -8.66 | 9.81 | -58.18 | 96.17 | 0.8470 | 271.1 | 999999 | |
| 0.97 | -1.00 | 0.90 | -1.00 | -8.62 | 9.65 | -58.35 | 96.12 | 0.8485 | 78.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.97 | -7.24 | 4.05 | -63.95 | 94.88 | 0.8963 | -236.0 | -299.8 | |
| 6.15 | 8.96 | 6.95 | 10.13 | -7.45 | 3.43 | -64.57 | 95.15 | 0.9009 | -502.9 | -328.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
