SDO HMI 2014-04-02 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.93 | 0.00 | 8.20 | 5.19 | 25.79 | -42.21 | 75.48 | 0.6923 | -486.9 | -375.6 | |
|
previous
or next observation for the same group /

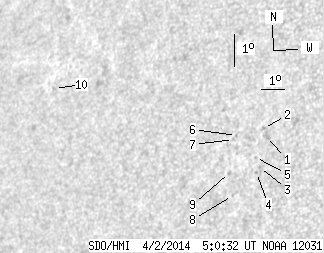

back to the solar disc SDO HMI 2014-04-02 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.95 | 0.00 | 2.63 | 5.16 | 27.58 | -40.42 | 74.84 | 0.6714 | -674.0 | -536.1 | |
| 0.00 | 1.58 | 0.00 | 1.06 | 5.41 | 27.44 | -40.56 | 74.53 | 0.6740 | -640.0 | -499.1 | |
| 0.00 | 0.61 | 0.00 | 0.41 | 4.23 | 27.37 | -40.63 | 76.26 | 0.6709 | -739.0 | -650.0 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 4.08 | 27.26 | -40.74 | 76.51 | 0.6718 | -763.0 | -681.8 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 4.55 | 27.19 | -40.81 | 75.87 | 0.6742 | -605.0 | -480.2 | |
| 0.00 | 0.35 | 0.00 | 0.24 | 5.28 | 26.37 | -41.63 | 75.14 | 0.6867 | -421.0 | -371.2 | |
| 0.00 | 0.26 | 0.00 | 0.18 | 5.17 | 26.26 | -41.74 | 75.34 | 0.6877 | -357.0 | -332.0 | |
| 0.00 | 0.61 | 0.00 | 0.41 | 3.45 | 26.33 | -41.67 | 77.74 | 0.6814 | -428.0 | -309.4 | |
| 0.00 | 1.32 | 0.00 | 0.89 | 4.17 | 26.17 | -41.83 | 76.78 | 0.6856 | -502.0 | -405.1 | |
| 0.00 | 1.58 | 0.00 | 1.26 | 7.40 | 18.23 | -49.77 | 75.18 | 0.7855 | 260.0 | 322.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
