SDO HMI 2014-04-02 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.80 | 18.98 | 8.13 | 27.09 | 10.29 | 359.52 | -67.93 | 76.47 | 0.9392 | 150.9 | 190.6 | |
|
previous
or next observation for the same group /

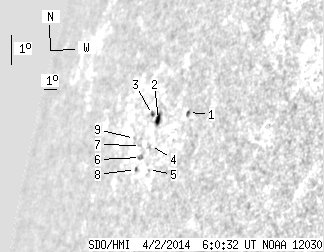

back to the solar disc SDO HMI 2014-04-02 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.61 | 1.58 | 0.78 | 2.02 | 10.73 | 2.29 | -65.16 | 75.43 | 0.9229 | -297.0 | -263.4 | |
| 3.78 | 6.15 | 5.31 | 8.64 | 10.76 | 359.97 | -67.48 | 75.89 | 0.9372 | 62.5 | -50.5 | |
| 0.88 | 1.93 | 1.27 | 2.79 | 10.98 | 359.38 | -68.07 | 75.78 | 0.9409 | -12.6 | -0.2 | |
| 0.00 | 0.53 | 0.00 | 0.74 | 9.99 | 359.67 | -67.78 | 76.76 | 0.9381 | 434.0 | 373.7 | |
| 0.00 | 0.79 | 0.00 | 1.10 | 9.23 | 359.82 | -67.63 | 77.53 | 0.9363 | 123.0 | 88.2 | |
| 0.00 | 2.99 | 0.00 | 4.35 | 9.69 | 358.97 | -68.48 | 77.21 | 0.9418 | 639.0 | 455.3 | |
| 0.00 | 1.67 | 0.00 | 2.46 | 10.08 | 358.80 | -68.66 | 76.84 | 0.9432 | 351.0 | 350.8 | |
| 0.53 | 1.76 | 0.77 | 2.58 | 9.35 | 358.69 | -68.76 | 77.62 | 0.9430 | -30.7 | 43.3 | |
| 0.00 | 1.58 | 0.00 | 2.41 | 10.37 | 358.14 | -69.31 | 76.66 | 0.9471 | 373.0 | 335.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
