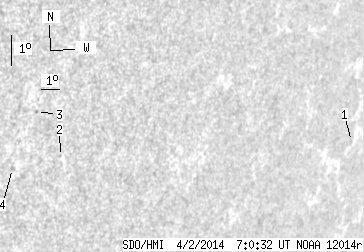

SDO HMI 2014-04-02 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.21 | 0.00 | 3.49 | -19.38 | 119.72 | 52.82 | 250.17 | 0.7930 | -281.5 | -273.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.86 | -17.85 | 133.68 | 66.78 | 253.31 | 0.9149 | 378.0 | 315.1 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -19.87 | 116.99 | 50.09 | 249.50 | 0.7724 | -489.0 | -437.7 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -18.61 | 115.31 | 48.40 | 250.86 | 0.7526 | -380.0 | -336.2 | |
| 0.00 | 2.28 | 0.00 | 1.71 | -20.42 | 114.88 | 47.97 | 248.38 | 0.7511 | -635.0 | -521.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
