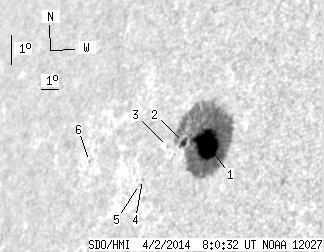

SDO HMI 2014-04-02 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.93 | 289.06 | 42.77 | 253.74 | 12.47 | 13.87 | -52.49 | 70.02 | 0.8262 | -798.9 | -210.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.71 | 286.25 | 38.98 | 251.03 | 12.46 | 14.02 | -52.33 | 69.98 | 0.8248 | -960.0 | -215.9 | |
| 4.22 | -1.00 | 3.79 | -1.00 | 12.64 | 12.74 | -53.62 | 70.21 | 0.8371 | -298.9 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.81 | 12.60 | 11.91 | -54.45 | 70.53 | 0.8443 | -258.0 | -225.7 | |
| 0.00 | 0.61 | 0.00 | 0.58 | 11.66 | 10.85 | -55.51 | 71.93 | 0.8512 | 561.0 | 503.9 | |
| 0.00 | 0.44 | 0.00 | 0.41 | 11.52 | 10.73 | -55.63 | 72.13 | 0.8518 | 546.0 | 529.6 | |
| 0.00 | 0.88 | 0.00 | 0.91 | 12.55 | 7.53 | -58.82 | 71.90 | 0.8806 | 339.0 | 318.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
