SDO HMI 2014-04-02 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.11 | 70.26 | 22.73 | 48.37 | 16.89 | 28.73 | -37.63 | 57.34 | 0.6958 | -46.7 | 119.8 | |
|
previous
or next observation for the same group /

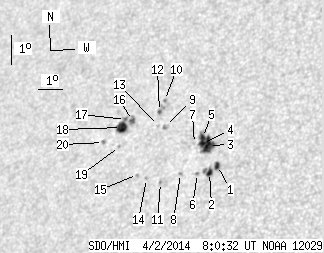

back to the solar disc SDO HMI 2014-04-02 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.63 | 4.30 | 1.75 | 2.86 | 15.99 | 30.63 | -35.72 | 57.19 | 0.6701 | -867.9 | -669.5 | |
| 2.72 | 7.20 | 1.82 | 4.81 | 15.79 | 30.37 | -35.99 | 57.65 | 0.6716 | -820.2 | -522.9 | |
| 10.72 | 23.80 | 7.22 | 16.07 | 16.68 | 30.14 | -36.22 | 56.66 | 0.6798 | -859.7 | -282.9 | |
| 3.34 | -3.00 | 2.26 | -3.00 | 16.76 | 29.89 | -36.47 | 56.74 | 0.6830 | -669.0 | 999999 | |
| 2.72 | -3.00 | 1.85 | -3.00 | 16.96 | 29.85 | -36.51 | 56.52 | 0.6847 | -410.0 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.88 | 15.79 | 29.90 | -36.45 | 57.97 | 0.6767 | -473.0 | -312.0 | |
| 0.00 | 0.61 | 0.00 | 0.42 | 16.78 | 29.57 | -36.79 | 56.93 | 0.6865 | 357.0 | 274.9 | |
| 0.00 | 1.32 | 0.00 | 0.89 | 15.84 | 29.23 | -37.13 | 58.37 | 0.6843 | -553.0 | -443.7 | |
| 0.00 | 2.99 | 0.00 | 2.08 | 17.43 | 28.27 | -38.09 | 56.99 | 0.7041 | 653.0 | 605.9 | |
| 0.00 | 1.32 | 0.00 | 0.93 | 18.30 | 28.01 | -38.35 | 56.09 | 0.7121 | 655.0 | 564.6 | |
| 0.00 | 1.23 | 0.00 | 0.84 | 15.60 | 28.49 | -37.86 | 59.16 | 0.6908 | 604.0 | 541.8 | |
| 0.70 | 4.48 | 0.49 | 3.14 | 17.95 | 27.90 | -38.46 | 56.60 | 0.7111 | 654.1 | 590.6 | |
| 0.00 | 1.05 | 0.00 | 0.74 | 17.48 | 27.98 | -38.38 | 57.12 | 0.7075 | 661.0 | 440.6 | |
| 0.00 | 1.14 | 0.00 | 0.79 | 15.77 | 27.90 | -38.46 | 59.32 | 0.6982 | 594.0 | 499.8 | |
| 0.00 | 0.88 | 0.00 | 0.61 | 15.93 | 27.50 | -38.85 | 59.37 | 0.7034 | 565.0 | 488.5 | |
| 1.58 | 4.04 | 1.13 | 2.88 | 17.73 | 26.86 | -39.50 | 57.53 | 0.7204 | 770.1 | 618.6 | |
| 0.97 | 12.12 | 0.69 | 8.67 | 17.79 | 26.56 | -39.80 | 57.65 | 0.7238 | 516.2 | 378.8 | |
| 7.73 | -17.00 | 5.52 | -17.00 | 17.53 | 26.46 | -39.90 | 58.02 | 0.7234 | 752.2 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.56 | 16.91 | 26.54 | -39.82 | 58.74 | 0.7190 | -167.0 | -211.8 | |
| 0.00 | 1.67 | 0.00 | 1.20 | 17.09 | 25.83 | -40.53 | 58.94 | 0.7273 | 617.0 | 474.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
