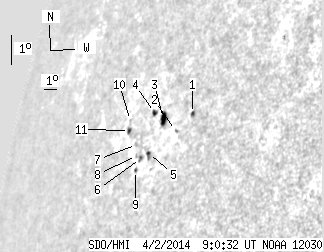

SDO HMI 2014-04-02 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.84 | 26.78 | 12.89 | 35.41 | 10.37 | 359.64 | -66.17 | 76.04 | 0.9286 | 66.0 | 165.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.97 | 2.02 | 1.15 | 2.40 | 10.68 | 2.44 | -63.37 | 75.10 | 0.9107 | -322.5 | -217.9 | |
| 0.00 | 1.23 | 0.00 | 1.51 | 10.26 | 1.41 | -64.40 | 75.78 | 0.9171 | -327.0 | -354.4 | |
| 4.74 | 7.90 | 6.11 | 10.18 | 10.74 | 0.35 | -65.46 | 75.50 | 0.9248 | -77.3 | -50.2 | |
| 1.49 | 2.90 | 1.99 | 3.86 | 11.01 | 359.55 | -66.26 | 75.38 | 0.9302 | -122.9 | -53.3 | |
| 0.97 | 3.25 | 1.27 | 4.27 | 9.73 | 359.63 | -66.18 | 76.72 | 0.9281 | 424.9 | 458.5 | |
| 0.00 | 2.46 | 0.00 | 3.31 | 9.64 | 359.05 | -66.76 | 76.93 | 0.9316 | 535.0 | 420.8 | |
| 0.00 | 1.41 | 0.00 | 1.95 | 10.13 | 358.53 | -67.28 | 76.52 | 0.9353 | 351.0 | 348.8 | |
| 0.00 | 1.05 | 0.00 | 1.45 | 9.77 | 358.68 | -67.13 | 76.87 | 0.9340 | 347.0 | 284.5 | |
| 0.44 | 1.23 | 0.60 | 1.67 | 9.30 | 358.79 | -67.02 | 77.35 | 0.9327 | 63.4 | 107.4 | |
| 0.00 | 0.26 | 0.00 | 0.38 | 10.97 | 357.66 | -68.15 | 75.82 | 0.9414 | 124.0 | 118.3 | |
| 1.23 | 3.07 | 1.77 | 4.43 | 10.65 | 357.73 | -68.08 | 76.14 | 0.9406 | 373.3 | 304.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
