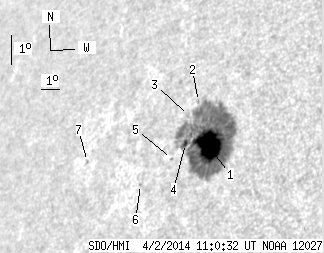

SDO HMI 2014-04-02 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.30 | 291.81 | 40.62 | 246.38 | 12.46 | 13.86 | -50.85 | 69.45 | 0.8109 | -702.4 | -215.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.75 | 286.19 | 38.42 | 241.31 | 12.44 | 13.98 | -50.73 | 69.43 | 0.8097 | -838.1 | -225.9 | |
| 0.00 | 1.32 | 0.00 | 1.14 | 13.92 | 13.06 | -51.66 | 68.05 | 0.8230 | 178.0 | 145.3 | |
| 0.00 | 1.14 | 0.00 | 1.00 | 13.51 | 12.68 | -52.03 | 68.66 | 0.8251 | 169.0 | 192.1 | |
| 2.55 | -1.00 | 2.20 | -1.00 | 12.61 | 12.80 | -51.92 | 69.66 | 0.8214 | -342.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.77 | 12.20 | 12.21 | -52.51 | 70.35 | 0.8256 | -359.0 | -274.0 | |
| 0.00 | 1.05 | 0.00 | 0.95 | 11.52 | 10.81 | -53.91 | 71.61 | 0.8366 | 591.0 | 532.7 | |
| 0.00 | 1.23 | 0.00 | 1.21 | 12.55 | 7.60 | -57.12 | 71.43 | 0.8668 | 328.0 | 259.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
