SDO HMI 2014-04-02 12:00:32 UT

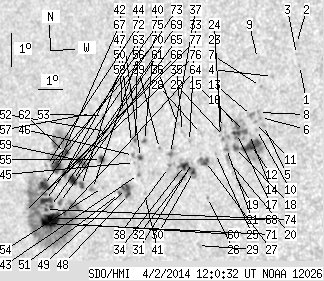

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.48 | 471.33 | 74.85 | 337.99 | -11.35 | 17.67 | -46.50 | 99.54 | 0.7222 | -86.1 | -51.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.60 | -8.52 | 26.22 | -37.95 | 95.59 | 0.6133 | 583.0 | 491.2 | |
| 0.00 | 1.67 | 0.00 | 1.04 | -7.86 | 26.18 | -37.99 | 94.50 | 0.6138 | 645.0 | 525.7 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -8.19 | 26.14 | -38.02 | 95.04 | 0.6143 | 680.0 | 674.0 | |
| 0.00 | 1.40 | 0.00 | 0.89 | -8.78 | 25.14 | -39.03 | 95.99 | 0.6280 | 443.0 | 342.1 | |
| 0.00 | 2.20 | 0.00 | 1.41 | -10.22 | 24.59 | -39.58 | 98.25 | 0.6359 | 863.0 | 661.6 | |
| 0.00 | 1.05 | 0.00 | 0.68 | -9.97 | 24.50 | -39.66 | 97.85 | 0.6369 | 795.0 | 720.8 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -9.04 | 24.63 | -39.53 | 96.40 | 0.6348 | 630.0 | 508.4 | |
| 0.00 | 1.76 | 0.00 | 1.13 | -9.81 | 24.45 | -39.72 | 97.61 | 0.6376 | 811.0 | 681.6 | |
| 0.00 | 1.58 | 0.00 | 1.01 | -8.20 | 24.62 | -39.54 | 95.06 | 0.6349 | 469.0 | 402.2 | |
| 0.00 | 1.05 | 0.00 | 0.68 | -10.32 | 24.29 | -39.87 | 98.39 | 0.6399 | 850.0 | 709.4 | |
| 0.00 | 1.32 | 0.00 | 0.85 | -10.10 | 24.28 | -39.88 | 98.05 | 0.6399 | 794.0 | 736.7 | |
| 11.15 | 34.24 | 7.20 | 22.12 | -10.78 | 24.02 | -40.15 | 99.09 | 0.6437 | 894.0 | 454.0 | |
| 0.00 | 3.34 | 0.00 | 2.15 | -9.88 | 24.16 | -40.01 | 97.70 | 0.6414 | 740.0 | 686.8 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -10.45 | 23.99 | -40.17 | 98.57 | 0.6439 | 714.0 | 530.8 | |
| 1.32 | 22.13 | 0.85 | 14.37 | -10.34 | 23.81 | -40.36 | 98.40 | 0.6462 | 863.6 | 643.4 | |
| 2.02 | -15.00 | 1.31 | -15.00 | -10.17 | 23.55 | -40.61 | 98.12 | 0.6495 | 738.7 | 999999 | |
| 2.55 | -15.00 | 1.66 | -15.00 | -10.38 | 23.48 | -40.69 | 98.43 | 0.6506 | 791.1 | 999999 | |
| 1.49 | -12.00 | 0.97 | -12.00 | -10.79 | 23.37 | -40.79 | 99.07 | 0.6522 | 608.2 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -11.53 | 23.16 | -41.00 | 100.19 | 0.6555 | 157.0 | 254.3 | |
| 0.00 | 2.90 | 0.00 | 1.90 | -11.13 | 22.99 | -41.18 | 99.55 | 0.6574 | 555.0 | 420.9 | |
| 0.00 | 4.13 | 0.00 | 2.70 | -10.80 | 23.01 | -41.16 | 99.05 | 0.6570 | 626.0 | 490.5 | |
| 0.00 | 2.90 | 0.00 | 1.90 | -10.43 | 22.99 | -41.18 | 98.49 | 0.6570 | 535.0 | 499.9 | |
| 0.00 | 3.86 | 0.00 | 2.53 | -10.15 | 22.91 | -41.26 | 98.06 | 0.6579 | 318.0 | 378.8 | |
| 0.00 | 1.32 | 0.00 | 0.87 | -10.39 | 22.83 | -41.34 | 98.42 | 0.6590 | 412.0 | 366.0 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -10.91 | 22.54 | -41.63 | 99.19 | 0.6631 | 500.0 | 454.7 | |
| 0.00 | 1.05 | 0.00 | 0.70 | -12.20 | 21.97 | -42.20 | 101.08 | 0.6713 | -530.0 | -406.3 | |
| 2.63 | 8.25 | 1.75 | 5.49 | -11.12 | 22.09 | -42.08 | 99.47 | 0.6689 | 783.8 | 597.4 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -10.27 | 22.07 | -42.09 | 98.20 | 0.6687 | 543.0 | 472.2 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -13.61 | 21.25 | -42.92 | 103.07 | 0.6818 | 414.0 | 450.8 | |
| 1.67 | 23.27 | 1.12 | 15.69 | -11.38 | 21.54 | -42.62 | 99.82 | 0.6760 | 774.7 | 282.3 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -11.11 | 21.55 | -42.61 | 99.42 | 0.6758 | 263.0 | 256.1 | |
| 0.97 | -30.00 | 0.65 | -30.00 | -11.28 | 21.40 | -42.77 | 99.66 | 0.6778 | 785.1 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -10.47 | 21.54 | -42.63 | 98.48 | 0.6756 | 643.0 | 544.8 | |
| 3.78 | -30.00 | 2.54 | -30.00 | -11.18 | 21.21 | -42.96 | 99.49 | 0.6802 | 650.5 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.71 | -10.15 | 21.30 | -42.86 | 97.99 | 0.6785 | 342.0 | 333.8 | |
| 0.00 | 1.76 | 0.00 | 1.18 | -9.90 | 21.14 | -43.03 | 97.61 | 0.6805 | 586.0 | 427.1 | |
| 0.70 | 5.18 | 0.48 | 3.52 | -10.77 | 20.69 | -43.47 | 98.87 | 0.6864 | -299.0 | -28.8 | |
| 0.00 | 2.63 | 0.00 | 1.79 | -11.18 | 20.53 | -43.64 | 99.46 | 0.6886 | 401.0 | 134.4 | |
| 0.00 | 1.14 | 0.00 | 0.78 | -10.59 | 20.26 | -43.91 | 98.58 | 0.6917 | -644.0 | -525.2 | |
| 0.61 | 2.20 | 0.42 | 1.52 | -10.30 | 19.67 | -44.49 | 98.15 | 0.6989 | 720.3 | 567.0 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -11.88 | 19.36 | -44.80 | 100.39 | 0.7034 | -625.0 | -434.7 | |
| 1.32 | 2.63 | 0.91 | 1.83 | -10.79 | 19.41 | -44.76 | 98.84 | 0.7023 | 672.2 | 506.7 | |
| 0.00 | 1.58 | 0.00 | 1.10 | -11.29 | 19.22 | -44.94 | 99.55 | 0.7048 | -778.0 | -681.2 | |
| 0.61 | 2.55 | 0.43 | 1.77 | -10.27 | 19.29 | -44.88 | 98.09 | 0.7036 | 552.0 | 393.6 | |
| 0.00 | 1.05 | 0.00 | 0.73 | -10.92 | 19.12 | -45.04 | 99.01 | 0.7058 | 367.0 | 289.0 | |
| 0.00 | 2.02 | 0.00 | 1.41 | -10.71 | 19.12 | -45.04 | 98.71 | 0.7058 | 439.0 | 359.2 | |
| 0.00 | 1.05 | 0.00 | 0.73 | -10.32 | 19.11 | -45.06 | 98.15 | 0.7058 | 373.0 | 270.7 | |
| 1.93 | 14.84 | 1.36 | 10.45 | -11.86 | 18.67 | -45.50 | 100.31 | 0.7118 | 407.1 | -121.9 | |
| 4.04 | -48.00 | 2.84 | -48.00 | -11.67 | 18.62 | -45.54 | 100.05 | 0.7123 | -585.6 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -9.33 | 18.89 | -45.27 | 96.75 | 0.7083 | 572.0 | 510.8 | |
| 0.70 | -48.00 | 0.50 | -48.00 | -11.79 | 18.29 | -45.88 | 100.20 | 0.7163 | 159.6 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -9.90 | 18.09 | -46.07 | 97.55 | 0.7180 | -716.0 | -588.5 | |
| 0.00 | 1.14 | 0.00 | 0.81 | -9.41 | 18.05 | -46.12 | 96.86 | 0.7185 | 376.0 | 371.1 | |
| 0.00 | 0.79 | 0.00 | 0.57 | -11.56 | 17.58 | -46.58 | 99.83 | 0.7246 | -605.0 | -543.1 | |
| 2.37 | 3.86 | 1.69 | 2.76 | -10.72 | 17.72 | -46.45 | 98.67 | 0.7227 | -726.3 | -565.3 | |
| 0.00 | 2.72 | 0.00 | 1.97 | -11.55 | 17.14 | -47.03 | 99.80 | 0.7298 | -698.0 | -710.5 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -9.31 | 17.54 | -46.63 | 96.72 | 0.7246 | -481.0 | -487.3 | |
| 2.20 | 70.68 | 1.60 | 52.10 | -11.42 | 16.67 | -47.50 | 99.60 | 0.7353 | -834.5 | -407.5 | |
| 2.63 | 7.46 | 1.92 | 5.42 | -10.67 | 16.74 | -47.43 | 98.58 | 0.7342 | -750.2 | -602.0 | |
| 0.00 | 0.70 | 0.00 | 0.52 | -12.57 | 16.26 | -47.91 | 101.14 | 0.7405 | -415.0 | -419.6 | |
| 5.44 | -58.00 | 3.99 | -58.00 | -11.24 | 16.30 | -47.87 | 99.34 | 0.7395 | -837.9 | 999999 | |
| 3.86 | -58.00 | 2.84 | -58.00 | -10.41 | 16.16 | -48.01 | 98.21 | 0.7409 | -794.0 | 999999 | |
| 2.55 | -58.00 | 1.88 | -58.00 | -10.97 | 15.99 | -48.18 | 98.97 | 0.7430 | -794.1 | 999999 | |
| 2.02 | 204.59 | 1.50 | 154.02 | -12.16 | 15.71 | -48.45 | 100.56 | 0.7466 | -894.9 | -199.0 | |
| 1.05 | 3.16 | 0.78 | 2.35 | -11.84 | 15.56 | -48.61 | 100.13 | 0.7482 | -793.4 | -647.3 | |
| 0.00 | 1.40 | 0.00 | 1.04 | -11.18 | 15.67 | -48.50 | 99.25 | 0.7467 | -603.0 | -556.9 | |
| 7.81 | -58.00 | 5.80 | -58.00 | -10.76 | 15.67 | -48.50 | 98.68 | 0.7466 | -666.7 | 999999 | |
| 13.70 | -64.00 | 10.27 | -64.00 | -12.30 | 15.16 | -49.00 | 100.71 | 0.7528 | -837.6 | 999999 | |
| 1.05 | -64.00 | 0.79 | -64.00 | -11.93 | 15.12 | -49.05 | 100.22 | 0.7532 | -832.4 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.98 | -10.79 | 15.24 | -48.92 | 98.70 | 0.7515 | -148.0 | -149.7 | |
| 6.85 | -64.00 | 5.17 | -64.00 | -12.42 | 14.80 | -49.36 | 100.86 | 0.7569 | -692.2 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.85 | -10.69 | 15.22 | -48.95 | 98.58 | 0.7517 | -238.0 | -171.0 | |
| 5.88 | -64.00 | 4.43 | -64.00 | -11.73 | 14.93 | -49.24 | 99.95 | 0.7552 | -661.6 | 999999 | |
| 0.97 | -64.00 | 0.73 | -64.00 | -12.00 | 14.86 | -49.30 | 100.30 | 0.7561 | -442.3 | 999999 | |
| 7.29 | -64.00 | 5.48 | -64.00 | -11.28 | 14.94 | -49.22 | 99.35 | 0.7549 | -695.8 | 999999 | |
| 1.32 | -64.00 | 0.99 | -64.00 | -11.51 | 14.89 | -49.28 | 99.66 | 0.7556 | -637.7 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.81 | -12.00 | 13.86 | -50.31 | 100.27 | 0.7672 | 284.0 | 250.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
