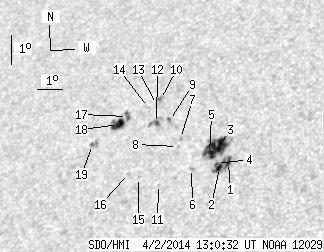

SDO HMI 2014-04-02 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42.40 | 102.55 | 27.73 | 67.50 | 16.78 | 29.22 | -34.40 | 55.19 | 0.6606 | -182.1 | 31.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.25 | 59.79 | 2.08 | 38.55 | 15.98 | 31.08 | -32.54 | 54.80 | 0.6351 | -965.1 | -513.1 | |
| 3.07 | -1.00 | 1.97 | -1.00 | 15.84 | 30.77 | -32.85 | 55.24 | 0.6374 | -909.5 | 999999 | |
| 18.44 | -1.00 | 11.91 | -1.00 | 16.56 | 30.60 | -33.02 | 54.42 | 0.6445 | -754.5 | 999999 | |
| 0.26 | -1.00 | 0.17 | -1.00 | 15.98 | 30.63 | -32.98 | 55.17 | 0.6399 | -701.7 | 999999 | |
| 7.90 | -1.00 | 5.11 | -1.00 | 16.32 | 30.31 | -33.31 | 54.97 | 0.6459 | -679.0 | 999999 | |
| 0.00 | 2.02 | 0.00 | 1.31 | 15.88 | 29.72 | -33.90 | 56.02 | 0.6493 | -676.0 | -507.0 | |
| 0.00 | 1.76 | 0.00 | 1.16 | 16.89 | 29.10 | -34.52 | 55.17 | 0.6629 | 244.0 | 229.4 | |
| 0.00 | 0.88 | 0.00 | 0.58 | 16.63 | 29.04 | -34.58 | 55.54 | 0.6619 | -424.0 | -352.7 | |
| 0.00 | 2.37 | 0.00 | 1.58 | 17.51 | 28.54 | -35.08 | 54.79 | 0.6731 | 712.0 | 578.9 | |
| 0.00 | 3.07 | 0.00 | 2.08 | 18.24 | 28.03 | -35.59 | 54.26 | 0.6833 | 656.0 | 550.8 | |
| 0.00 | 0.26 | 0.00 | 0.17 | 15.44 | 28.55 | -35.07 | 57.46 | 0.6592 | 720.0 | 691.0 | |
| 1.23 | 7.90 | 0.83 | 5.31 | 17.45 | 28.05 | -35.56 | 55.23 | 0.6778 | 857.3 | 660.5 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 18.08 | 27.91 | -35.71 | 54.54 | 0.6835 | 717.0 | 607.7 | |
| 0.00 | 1.05 | 0.00 | 0.72 | 18.00 | 27.62 | -36.00 | 54.85 | 0.6860 | 294.0 | 261.8 | |
| 0.00 | 0.88 | 0.00 | 0.58 | 15.72 | 27.73 | -35.89 | 57.68 | 0.6700 | 625.0 | 475.3 | |
| 0.00 | 1.32 | 0.00 | 0.88 | 15.88 | 27.31 | -36.31 | 57.77 | 0.6756 | 605.0 | 452.3 | |
| 0.00 | 4.04 | 0.00 | 2.76 | 17.76 | 26.85 | -36.77 | 55.69 | 0.6924 | 786.0 | 624.9 | |
| 7.64 | 12.12 | 5.24 | 8.32 | 17.52 | 26.55 | -37.07 | 56.20 | 0.6940 | 725.1 | 379.2 | |
| 0.61 | 4.21 | 0.42 | 2.91 | 16.94 | 25.66 | -37.96 | 57.54 | 0.6997 | 625.0 | 595.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
