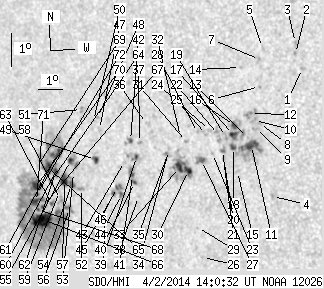

SDO HMI 2014-04-02 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104.04 | 524.34 | 73.34 | 368.56 | -11.32 | 17.73 | -45.34 | 99.55 | 0.7084 | -141.9 | -56.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.02 | 0.00 | 1.24 | -8.61 | 26.46 | -36.61 | 95.77 | 0.5949 | 721.0 | 640.8 | |
| 0.00 | 1.40 | 0.00 | 0.87 | -8.15 | 26.24 | -36.83 | 94.98 | 0.5978 | 695.0 | 610.3 | |
| 0.00 | 1.58 | 0.00 | 0.97 | -7.82 | 26.28 | -36.79 | 94.43 | 0.5973 | 702.0 | 645.2 | |
| 0.00 | 1.58 | 0.00 | 1.00 | -12.36 | 24.76 | -38.31 | 101.80 | 0.6208 | 667.0 | 507.0 | |
| 0.00 | 1.67 | 0.00 | 1.05 | -7.88 | 25.01 | -38.06 | 94.55 | 0.6148 | 577.0 | 540.8 | |
| 0.00 | 1.14 | 0.00 | 0.72 | -9.04 | 24.76 | -38.31 | 96.43 | 0.6184 | 676.0 | 535.2 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -8.23 | 24.86 | -38.21 | 95.12 | 0.6169 | 692.0 | 573.0 | |
| 0.00 | 1.40 | 0.00 | 0.89 | -10.14 | 24.61 | -38.46 | 98.21 | 0.6209 | 864.0 | 713.6 | |
| 0.00 | 2.81 | 0.00 | 1.78 | -10.28 | 24.43 | -38.64 | 98.42 | 0.6233 | 803.0 | 681.0 | |
| 0.00 | 3.07 | 0.00 | 1.94 | -10.04 | 24.43 | -38.64 | 98.03 | 0.6232 | 814.0 | 695.2 | |
| 7.11 | 33.45 | 4.51 | 21.27 | -10.78 | 24.20 | -38.87 | 99.20 | 0.6268 | 934.4 | 464.5 | |
| 0.00 | 6.50 | 0.00 | 4.11 | -9.82 | 24.30 | -38.77 | 97.67 | 0.6248 | 736.0 | 660.9 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -10.53 | 24.08 | -38.99 | 98.79 | 0.6282 | 718.0 | 593.6 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -8.42 | 24.10 | -38.97 | 95.42 | 0.6272 | 443.0 | 304.1 | |
| 0.00 | 2.11 | 0.00 | 1.35 | -11.52 | 23.53 | -39.54 | 100.31 | 0.6364 | -203.0 | -145.7 | |
| 2.19 | 19.66 | 1.40 | 12.56 | -10.13 | 23.63 | -39.44 | 98.13 | 0.6340 | 776.8 | 662.6 | |
| 2.98 | -16.00 | 1.91 | -16.00 | -10.40 | 23.55 | -39.52 | 98.55 | 0.6352 | 824.8 | 999999 | |
| 2.11 | -11.00 | 1.35 | -11.00 | -10.79 | 23.49 | -39.58 | 99.15 | 0.6363 | 660.4 | 999999 | |
| 0.00 | 2.90 | 0.00 | 1.86 | -10.44 | 23.22 | -39.84 | 98.58 | 0.6395 | 644.0 | 538.8 | |
| 0.00 | 1.67 | 0.00 | 1.08 | -11.06 | 23.04 | -40.02 | 99.54 | 0.6423 | 589.0 | 471.6 | |
| 0.70 | 3.34 | 0.45 | 2.15 | -10.85 | 23.04 | -40.03 | 99.21 | 0.6422 | 626.4 | 511.5 | |
| 0.00 | 6.76 | 0.00 | 4.36 | -10.36 | 22.96 | -40.11 | 98.44 | 0.6430 | 535.0 | 432.9 | |
| 0.00 | 1.32 | 0.00 | 0.85 | -10.91 | 22.63 | -40.44 | 99.27 | 0.6477 | 640.0 | 422.1 | |
| 0.00 | 1.93 | 0.00 | 1.25 | -10.21 | 22.62 | -40.45 | 98.20 | 0.6474 | 525.0 | 415.7 | |
| 0.00 | 1.49 | 0.00 | 0.97 | -10.32 | 22.48 | -40.59 | 98.36 | 0.6492 | 563.0 | 430.4 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -13.99 | 21.62 | -41.45 | 103.86 | 0.6638 | 472.0 | 399.1 | |
| 2.11 | 5.79 | 1.38 | 3.79 | -11.09 | 22.15 | -40.91 | 99.51 | 0.6540 | 799.3 | 681.6 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -10.24 | 22.13 | -40.94 | 98.21 | 0.6538 | 494.0 | 423.1 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -13.08 | 21.61 | -41.46 | 102.48 | 0.6628 | 449.0 | 362.3 | |
| 3.95 | 39.50 | 2.60 | 26.15 | -11.35 | 21.58 | -41.49 | 99.86 | 0.6616 | 788.5 | 182.2 | |
| 0.00 | 1.23 | 0.00 | 0.81 | -10.47 | 21.65 | -41.42 | 98.54 | 0.6602 | 632.0 | 493.9 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -10.31 | 21.43 | -41.64 | 98.28 | 0.6629 | 418.0 | 321.9 | |
| 4.74 | -30.00 | 3.14 | -30.00 | -11.23 | 21.23 | -41.84 | 99.66 | 0.6660 | 613.1 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.76 | -10.69 | 20.87 | -42.20 | 98.82 | 0.6702 | 103.0 | 113.4 | |
| 0.00 | 3.25 | 0.00 | 2.16 | -10.80 | 20.81 | -42.26 | 98.99 | 0.6711 | -706.0 | -283.2 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -9.81 | 20.11 | -42.96 | 97.49 | 0.6796 | 577.0 | 569.3 | |
| 0.00 | 1.67 | 0.00 | 1.13 | -10.36 | 19.72 | -43.35 | 98.28 | 0.6847 | 791.0 | 633.8 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -11.97 | 19.37 | -43.69 | 100.60 | 0.6899 | -684.0 | -539.2 | |
| 0.97 | 7.20 | 0.66 | 4.90 | -10.77 | 19.52 | -43.55 | 98.86 | 0.6873 | 649.0 | 404.9 | |
| 1.23 | 8.78 | 0.84 | 6.00 | -11.54 | 19.29 | -43.78 | 99.97 | 0.6906 | -664.4 | -473.1 | |
| 1.32 | -40.00 | 0.90 | -40.00 | -11.32 | 19.25 | -43.82 | 99.65 | 0.6910 | -806.3 | 999999 | |
| 1.14 | 3.60 | 0.78 | 2.46 | -10.27 | 19.36 | -43.71 | 98.13 | 0.6892 | 629.3 | 460.0 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -10.88 | 18.99 | -44.08 | 99.00 | 0.6940 | 311.0 | 204.3 | |
| 0.97 | 12.38 | 0.67 | 8.55 | -11.85 | 18.67 | -44.40 | 100.38 | 0.6984 | 446.2 | -214.1 | |
| 1.05 | -44.00 | 0.73 | -44.00 | -11.63 | 18.54 | -44.52 | 100.05 | 0.6999 | -705.6 | 999999 | |
| 0.88 | -44.00 | 0.61 | -44.00 | -11.79 | 18.34 | -44.73 | 100.28 | 0.7025 | 195.6 | 999999 | |
| 0.00 | 1.84 | 0.00 | 1.28 | -9.84 | 18.11 | -44.96 | 97.48 | 0.7045 | -700.0 | -530.3 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -9.47 | 18.09 | -44.98 | 96.96 | 0.7048 | 518.0 | 432.7 | |
| 2.55 | 4.39 | 1.78 | 3.07 | -10.72 | 17.77 | -45.30 | 98.72 | 0.7088 | -724.9 | -563.7 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -9.55 | 17.90 | -45.17 | 97.06 | 0.7070 | -208.0 | -157.4 | |
| 0.00 | 2.19 | 0.00 | 1.54 | -9.18 | 17.44 | -45.63 | 96.54 | 0.7126 | -603.0 | -560.4 | |
| 0.00 | 2.63 | 0.00 | 1.87 | -11.54 | 16.99 | -46.08 | 99.83 | 0.7186 | -745.0 | -708.8 | |
| 0.00 | 0.70 | 0.00 | 0.50 | -11.03 | 16.74 | -46.33 | 99.11 | 0.7213 | -712.0 | -664.6 | |
| 2.72 | 14.13 | 1.95 | 10.14 | -11.38 | 16.58 | -46.49 | 99.59 | 0.7234 | -918.7 | -699.8 | |
| 2.46 | 8.34 | 1.75 | 5.94 | -10.66 | 16.69 | -46.38 | 98.60 | 0.7219 | -792.2 | -560.7 | |
| 0.00 | 4.56 | 0.00 | 3.28 | -12.09 | 16.33 | -46.74 | 100.56 | 0.7266 | -890.0 | -784.1 | |
| 6.76 | -54.00 | 4.86 | -54.00 | -11.24 | 16.30 | -46.77 | 99.38 | 0.7267 | -825.2 | 999999 | |
| 0.00 | 3.86 | 0.00 | 2.79 | -11.79 | 16.00 | -47.07 | 100.13 | 0.7304 | -805.0 | -724.0 | |
| 0.00 | 1.05 | 0.00 | 0.76 | -11.55 | 16.01 | -47.06 | 99.79 | 0.7302 | -654.0 | -555.2 | |
| 0.00 | 1.58 | 0.00 | 1.14 | -10.80 | 16.12 | -46.95 | 98.77 | 0.7286 | -635.0 | -523.2 | |
| 6.94 | 62.59 | 5.00 | 45.28 | -10.41 | 16.16 | -46.91 | 98.23 | 0.7281 | -739.5 | -345.2 | |
| 2.98 | -61.00 | 2.16 | -61.00 | -10.94 | 15.96 | -47.11 | 98.95 | 0.7306 | -824.4 | 999999 | |
| 1.14 | 2.90 | 0.83 | 2.11 | -11.87 | 15.57 | -47.50 | 100.22 | 0.7355 | -797.3 | -679.8 | |
| 0.53 | 2.46 | 0.38 | 1.79 | -11.22 | 15.67 | -47.40 | 99.33 | 0.7340 | -613.0 | -522.5 | |
| 7.29 | -61.00 | 5.30 | -61.00 | -10.79 | 15.63 | -47.44 | 98.74 | 0.7344 | -658.7 | 999999 | |
| 20.28 | 217.80 | 14.92 | 160.73 | -12.32 | 15.05 | -48.02 | 100.80 | 0.7416 | -819.6 | -181.6 | |
| 1.14 | -66.00 | 0.84 | -66.00 | -11.93 | 15.14 | -47.92 | 100.28 | 0.7404 | -811.2 | 999999 | |
| 0.88 | -66.00 | 0.65 | -66.00 | -12.00 | 14.90 | -48.17 | 100.36 | 0.7433 | -472.6 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.84 | -10.69 | 15.19 | -47.88 | 98.60 | 0.7394 | -202.0 | -95.4 | |
| 6.58 | -66.00 | 4.84 | -66.00 | -11.28 | 15.02 | -48.05 | 99.40 | 0.7416 | -744.4 | 999999 | |
| 7.02 | -66.00 | 5.18 | -66.00 | -11.76 | 14.91 | -48.16 | 100.03 | 0.7430 | -601.5 | 999999 | |
| 1.32 | -66.00 | 0.97 | -66.00 | -11.55 | 14.96 | -48.11 | 99.75 | 0.7424 | -700.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
