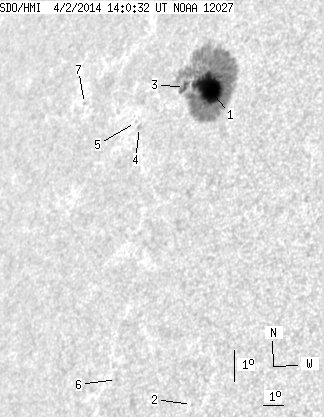

SDO HMI 2014-04-02 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.30 | 294.79 | 40.84 | 239.86 | 12.41 | 13.87 | -49.20 | 68.90 | 0.7948 | -667.9 | -229.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.00 | 290.22 | 37.26 | 235.93 | 12.45 | 14.03 | -49.04 | 68.79 | 0.7933 | -858.0 | -243.1 | |
| 0.00 | 0.44 | 0.00 | 0.33 | 2.66 | 14.67 | -48.39 | 80.82 | 0.7589 | 505.0 | 444.2 | |
| 4.30 | -1.00 | 3.58 | -1.00 | 12.59 | 12.80 | -50.27 | 69.09 | 0.8057 | -364.9 | 999999 | |
| 0.00 | 1.58 | 0.00 | 1.36 | 11.51 | 10.87 | -52.20 | 71.05 | 0.8208 | 597.0 | 549.7 | |
| 0.00 | 0.53 | 0.00 | 0.46 | 11.69 | 10.62 | -52.45 | 70.92 | 0.8237 | 563.0 | 427.7 | |
| 0.00 | 1.05 | 0.00 | 0.87 | 3.74 | 11.07 | -52.00 | 80.34 | 0.7999 | 579.0 | 438.1 | |
| 0.00 | 0.97 | 0.00 | 0.91 | 12.56 | 7.69 | -55.38 | 70.88 | 0.8522 | 415.0 | 393.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
