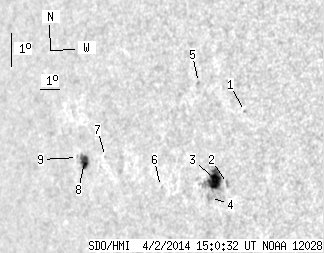

SDO HMI 2014-04-02 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.93 | 51.35 | 21.11 | 43.07 | -8.13 | 8.37 | -54.14 | 95.40 | 0.8070 | 272.2 | 216.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.54 | -6.60 | 12.02 | -50.50 | 93.23 | 0.7700 | 577.0 | 533.6 | |
| 0.00 | 2.46 | 0.00 | 1.95 | -8.67 | 10.84 | -51.68 | 95.95 | 0.7820 | 639.0 | 572.8 | |
| 17.38 | 29.76 | 13.93 | 23.90 | -8.50 | 10.23 | -52.28 | 95.75 | 0.7886 | 764.0 | 402.1 | |
| 0.00 | 4.30 | 0.00 | 3.47 | -9.01 | 9.93 | -52.59 | 96.42 | 0.7917 | 74.0 | 76.8 | |
| 0.00 | 1.14 | 0.00 | 0.92 | -5.54 | 9.92 | -52.60 | 92.03 | 0.7935 | 461.0 | 423.2 | |
| 0.00 | 0.53 | 0.00 | 0.45 | -8.46 | 7.46 | -55.06 | 95.80 | 0.8172 | 188.0 | 231.0 | |
| 0.00 | 0.88 | 0.00 | 0.81 | -7.29 | 4.68 | -57.84 | 94.54 | 0.8445 | -410.0 | -407.9 | |
| 7.55 | 10.53 | 7.18 | 10.02 | -7.32 | 3.45 | -59.07 | 94.66 | 0.8557 | -612.2 | -332.0 | |
| 0.00 | 1.05 | 0.00 | 1.01 | -7.16 | 3.06 | -59.45 | 94.50 | 0.8592 | -126.0 | -139.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
