SDO HMI 2014-04-02 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.11 | 56.97 | 18.53 | 46.92 | -8.10 | 8.62 | -53.35 | 95.32 | 0.7990 | 282.9 | 263.6 | |
|
previous
or next observation for the same group /

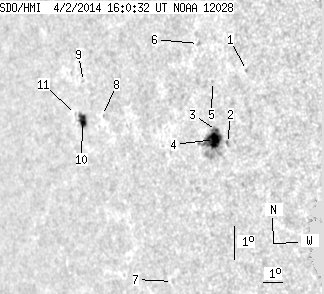

back to the solar disc SDO HMI 2014-04-02 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.94 | -6.60 | 12.09 | -49.88 | 93.18 | 0.7631 | 617.0 | 550.0 | |
| 0.00 | 1.76 | 0.00 | 1.37 | -8.69 | 10.83 | -51.14 | 95.96 | 0.7762 | 691.0 | 593.4 | |
| 0.26 | 38.62 | 0.21 | 30.66 | -8.26 | 10.38 | -51.59 | 95.42 | 0.7812 | 692.3 | 360.0 | |
| 14.92 | -3.00 | 11.83 | -3.00 | -8.52 | 10.23 | -51.74 | 95.76 | 0.7828 | 787.1 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.55 | -6.78 | 10.43 | -51.54 | 93.53 | 0.7813 | 496.0 | 431.9 | |
| 0.00 | 1.84 | 0.00 | 1.47 | -5.59 | 9.91 | -52.06 | 92.04 | 0.7877 | 552.0 | 428.3 | |
| 0.00 | 0.79 | 0.00 | 0.67 | -12.54 | 7.05 | -54.92 | 100.82 | 0.8154 | 363.0 | 299.1 | |
| 0.00 | 0.53 | 0.00 | 0.48 | -7.27 | 4.59 | -57.38 | 94.49 | 0.8402 | -456.0 | -418.5 | |
| 0.00 | 0.97 | 0.00 | 0.90 | -6.16 | 3.71 | -58.25 | 93.24 | 0.8489 | -410.0 | -390.5 | |
| 6.93 | 9.39 | 6.49 | 8.80 | -7.31 | 3.43 | -58.54 | 94.61 | 0.8509 | -619.4 | -397.3 | |
| 0.00 | 1.14 | 0.00 | 1.08 | -7.10 | 3.07 | -58.90 | 94.38 | 0.8543 | -194.0 | -143.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
