SDO HMI 2014-04-02 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.76 | 0.00 | 3.71 | -13.21 | 85.70 | 24.28 | 251.85 | 0.4218 | 438.0 | 345.6 | |
|
previous
or next observation for the same group /

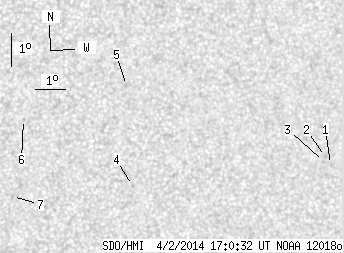

back to the solar disc SDO HMI 2014-04-02 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.30 | -13.26 | 90.86 | 29.44 | 254.52 | 0.4984 | 579.0 | 606.2 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -13.03 | 90.65 | 29.23 | 254.90 | 0.4948 | 647.0 | 549.9 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -13.18 | 90.60 | 29.18 | 254.58 | 0.4945 | 701.0 | 605.3 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -14.21 | 84.16 | 22.74 | 249.07 | 0.4030 | 511.0 | 455.2 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -11.21 | 83.68 | 22.27 | 256.23 | 0.3843 | 802.0 | 518.7 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -12.36 | 80.40 | 18.98 | 251.10 | 0.3373 | 682.0 | 584.4 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -14.69 | 80.23 | 18.82 | 244.47 | 0.3473 | -856.0 | -606.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
