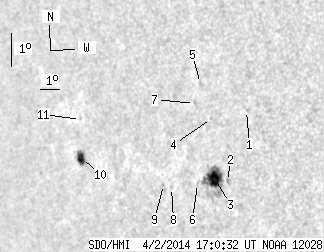

SDO HMI 2014-04-02 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.49 | 65.03 | 20.13 | 52.64 | -8.07 | 8.83 | -52.58 | 95.24 | 0.7911 | 347.7 | 251.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.46 | -6.64 | 12.05 | -49.37 | 93.20 | 0.7573 | 690.0 | 625.9 | |
| 0.00 | 1.84 | 0.00 | 1.43 | -8.68 | 10.82 | -50.60 | 95.93 | 0.7703 | 784.0 | 584.8 | |
| 17.64 | 44.15 | 13.81 | 34.62 | -8.50 | 10.22 | -51.19 | 95.72 | 0.7769 | 793.0 | 331.5 | |
| 0.00 | 0.97 | 0.00 | 0.76 | -6.74 | 10.37 | -51.04 | 93.43 | 0.7759 | 440.0 | 397.1 | |
| 0.00 | 2.19 | 0.00 | 1.73 | -5.65 | 9.99 | -51.43 | 92.06 | 0.7808 | 536.0 | 379.9 | |
| 0.00 | 0.79 | 0.00 | 0.63 | -8.61 | 9.37 | -52.05 | 95.88 | 0.7861 | 218.0 | 164.0 | |
| 0.00 | 1.49 | 0.00 | 1.19 | -6.22 | 9.62 | -51.79 | 92.82 | 0.7844 | 455.0 | 315.8 | |
| 0.00 | 0.79 | 0.00 | 0.65 | -8.61 | 8.06 | -53.36 | 95.93 | 0.7999 | 462.0 | 425.7 | |
| 0.00 | 0.97 | 0.00 | 0.80 | -8.49 | 7.67 | -53.74 | 95.79 | 0.8039 | 292.0 | 260.3 | |
| 6.85 | 10.44 | 6.32 | 9.64 | -7.31 | 3.47 | -57.95 | 94.57 | 0.8455 | -660.6 | -434.4 | |
| 0.00 | 0.79 | 0.00 | 0.73 | -6.15 | 3.63 | -57.79 | 93.18 | 0.8446 | -524.0 | -440.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
