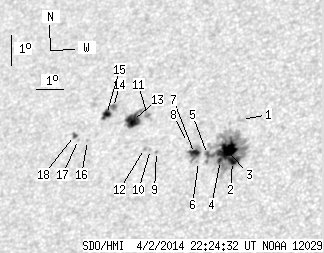

SDO HMI 2014-04-02 22:24:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.93 | 168.93 | 32.73 | 103.69 | 16.36 | 30.10 | -28.33 | 50.48 | 0.5919 | -199.5 | -208.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 22:24:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.60 | 0.00 | 2.19 | 17.10 | 31.55 | -26.89 | 48.08 | 0.5831 | -317.0 | 54.8 | |
| 5.00 | 110.18 | 3.02 | 66.75 | 15.75 | 31.44 | -27.00 | 50.04 | 0.5722 | -1135.2 | -399.3 | |
| 18.35 | -2.00 | 11.12 | -2.00 | 16.11 | 31.21 | -27.23 | 49.77 | 0.5780 | -1068.9 | 999999 | |
| 2.11 | -2.00 | 1.28 | -2.00 | 15.80 | 31.01 | -27.43 | 50.40 | 0.5774 | -943.6 | 999999 | |
| 1.84 | -2.00 | 1.12 | -2.00 | 16.02 | 30.52 | -27.92 | 50.59 | 0.5847 | -750.0 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.64 | 15.81 | 30.23 | -28.21 | 51.16 | 0.5861 | -515.0 | -509.8 | |
| 5.97 | 12.03 | 3.66 | 7.37 | 16.08 | 30.05 | -28.39 | 50.97 | 0.5903 | -684.0 | -203.8 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 16.46 | 29.74 | -28.70 | 50.76 | 0.5968 | -353.0 | -220.9 | |
| 0.00 | 1.23 | 0.00 | 0.76 | 16.23 | 28.66 | -29.77 | 52.08 | 0.6066 | -394.0 | -349.1 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 16.31 | 28.43 | -30.00 | 52.18 | 0.6098 | -462.0 | -308.5 | |
| 0.00 | 4.13 | 0.00 | 2.60 | 17.43 | 28.13 | -30.31 | 50.97 | 0.6221 | 881.0 | 662.4 | |
| 0.00 | 1.23 | 0.00 | 0.77 | 16.35 | 28.21 | -30.23 | 52.32 | 0.6126 | -299.0 | -212.9 | |
| 12.99 | 18.09 | 8.24 | 11.47 | 17.30 | 27.60 | -30.83 | 51.61 | 0.6266 | 860.1 | 528.8 | |
| 0.00 | 3.78 | 0.00 | 2.42 | 17.77 | 26.81 | -31.62 | 51.68 | 0.6386 | 900.0 | 639.8 | |
| 5.27 | 7.29 | 3.38 | 4.68 | 17.56 | 26.60 | -31.84 | 52.15 | 0.6393 | 753.3 | 496.3 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 16.75 | 26.05 | -32.39 | 53.66 | 0.6390 | 750.0 | 610.4 | |
| 0.00 | 1.14 | 0.00 | 0.74 | 16.80 | 25.70 | -32.73 | 53.87 | 0.6431 | 830.0 | 626.9 | |
| 1.40 | 2.81 | 0.91 | 1.82 | 16.94 | 25.53 | -32.91 | 53.83 | 0.6461 | 756.8 | 597.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
