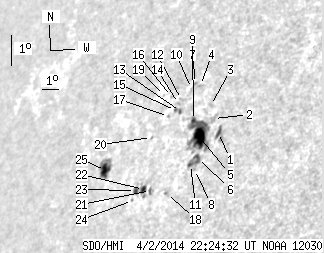

SDO HMI 2014-04-02 22:24:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.80 | 116.58 | 38.41 | 114.18 | 10.57 | 1.10 | -57.34 | 73.69 | 0.8638 | -38.0 | 88.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 22:24:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.11 | 4.57 | 1.93 | 4.19 | 10.74 | 3.48 | -54.96 | 72.82 | 0.8440 | -475.5 | -324.6 | |
| 0.00 | 4.65 | 0.00 | 4.33 | 11.22 | 3.08 | -55.36 | 72.40 | 0.8487 | 404.0 | 312.5 | |
| 0.00 | 1.49 | 0.00 | 1.40 | 11.65 | 2.78 | -55.65 | 71.99 | 0.8523 | 316.0 | 265.6 | |
| 0.00 | 1.58 | 0.00 | 1.53 | 12.35 | 2.01 | -56.42 | 71.44 | 0.8606 | 415.0 | 406.2 | |
| 15.80 | 50.22 | 14.90 | 47.47 | 10.72 | 2.46 | -55.98 | 73.15 | 0.8530 | -402.6 | 67.1 | |
| 3.16 | 10.71 | 2.96 | 10.06 | 10.02 | 2.53 | -55.90 | 73.92 | 0.8507 | -700.5 | -464.0 | |
| 0.00 | 1.14 | 0.00 | 1.11 | 12.44 | 1.70 | -56.74 | 71.43 | 0.8634 | 381.0 | 360.0 | |
| 0.00 | 1.14 | 0.00 | 1.07 | 9.69 | 2.46 | -55.98 | 74.32 | 0.8507 | -338.0 | -311.8 | |
| 1.58 | -5.00 | 1.52 | -5.00 | 11.26 | 1.96 | -56.47 | 72.68 | 0.8584 | -66.1 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.43 | 12.31 | 1.52 | -56.92 | 71.63 | 0.8646 | 461.0 | 503.6 | |
| 1.32 | -6.00 | 1.24 | -6.00 | 9.87 | 2.19 | -56.25 | 74.19 | 0.8534 | -408.6 | 999999 | |
| 0.00 | 1.58 | 0.00 | 1.56 | 12.01 | 1.05 | -57.38 | 72.11 | 0.8678 | 300.0 | 330.7 | |
| 0.79 | 3.86 | 0.78 | 3.82 | 11.62 | 1.12 | -57.32 | 72.51 | 0.8664 | 339.3 | -9.1 | |
| 0.00 | 1.40 | 0.00 | 1.39 | 11.89 | 0.91 | -57.52 | 72.27 | 0.8686 | 382.0 | 311.6 | |
| 0.44 | -13.00 | 0.44 | -13.00 | 11.69 | 0.81 | -57.62 | 72.53 | 0.8690 | -360.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.89 | 12.16 | 0.42 | -58.02 | 72.11 | 0.8733 | -367.0 | -326.3 | |
| 0.00 | 0.97 | 0.00 | 0.97 | 11.53 | 0.46 | -57.98 | 72.80 | 0.8716 | -426.0 | -358.7 | |
| 0.00 | 1.32 | 0.00 | 1.28 | 9.08 | 1.05 | -57.39 | 75.39 | 0.8616 | -185.0 | -143.9 | |
| 0.00 | 0.26 | 0.00 | 0.27 | 12.24 | 359.98 | -58.45 | 72.15 | 0.8769 | -340.0 | -360.3 | |
| 0.00 | 0.61 | 0.00 | 0.63 | 10.96 | 359.64 | -58.79 | 73.66 | 0.8770 | -234.0 | -224.6 | |
| 0.00 | 2.63 | 0.00 | 2.63 | 9.27 | 0.08 | -58.36 | 75.43 | 0.8701 | 626.0 | 552.2 | |
| 2.63 | 5.09 | 2.66 | 5.15 | 9.35 | 359.65 | -58.79 | 75.46 | 0.8738 | 482.2 | 359.8 | |
| 1.93 | 3.69 | 1.98 | 3.78 | 9.36 | 359.17 | -59.27 | 75.56 | 0.8777 | 417.0 | 254.8 | |
| 0.00 | 0.97 | 0.00 | 0.99 | 9.06 | 359.07 | -59.37 | 75.92 | 0.8780 | 227.0 | 187.4 | |
| 9.04 | 17.38 | 10.00 | 19.23 | 10.20 | 357.05 | -61.38 | 75.16 | 0.8956 | 405.5 | 279.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
