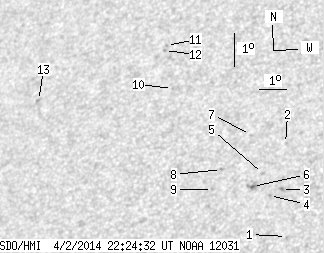

SDO HMI 2014-04-02 22:24:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 17.57 | 0.26 | 10.65 | 5.17 | 25.33 | -33.11 | 71.42 | 0.5755 | -280.9 | -261.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-02 22:24:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.31 | 2.40 | 28.13 | -30.30 | 74.63 | 0.5249 | -649.0 | -661.7 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 5.24 | 27.99 | -30.45 | 69.64 | 0.5403 | -574.0 | -442.4 | |
| 0.00 | 1.58 | 0.00 | 0.92 | 3.84 | 27.91 | -30.52 | 72.15 | 0.5344 | -880.0 | -809.8 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 3.68 | 27.50 | -30.93 | 72.67 | 0.5395 | -774.0 | -661.8 | |
| 0.00 | 1.32 | 0.00 | 0.78 | 4.37 | 27.22 | -31.21 | 71.63 | 0.5465 | -658.0 | -513.5 | |
| 0.44 | 4.74 | 0.26 | 2.81 | 3.99 | 26.89 | -31.55 | 72.48 | 0.5494 | -855.0 | -674.7 | |
| 0.00 | 0.44 | 0.00 | 0.26 | 5.59 | 26.74 | -31.70 | 69.84 | 0.5592 | -498.0 | -422.0 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 4.58 | 25.76 | -32.67 | 72.11 | 0.5677 | -590.0 | -487.5 | |
| 0.00 | 1.32 | 0.00 | 0.79 | 3.99 | 25.47 | -32.97 | 73.26 | 0.5691 | -570.0 | -392.9 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 7.19 | 23.81 | -34.63 | 69.02 | 0.6061 | 597.0 | 455.3 | |
| 0.00 | 0.97 | 0.00 | 0.61 | 8.54 | 23.45 | -34.98 | 67.17 | 0.6174 | 809.0 | 653.1 | |
| 0.00 | 1.05 | 0.00 | 0.66 | 8.39 | 23.40 | -35.04 | 67.43 | 0.6173 | 633.0 | 513.4 | |
| 0.00 | 2.02 | 0.00 | 1.34 | 7.18 | 18.71 | -39.72 | 71.67 | 0.6703 | 506.0 | 486.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
