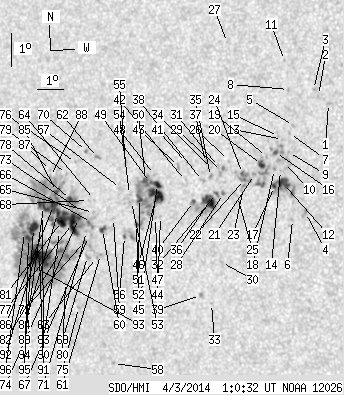

SDO HMI 2014-04-03 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 144.01 | 695.00 | 92.04 | 443.39 | -11.31 | 17.94 | -39.06 | 100.01 | 0.6287 | -37.9 | -83.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.02 | 0.00 | 1.16 | -8.43 | 26.59 | -30.41 | 95.68 | 0.5052 | 765.0 | 613.6 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -8.17 | 26.26 | -30.74 | 95.15 | 0.5101 | 658.0 | 669.5 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -7.98 | 26.10 | -30.90 | 94.77 | 0.5124 | 770.0 | 637.0 | |
| 0.00 | 3.43 | 0.00 | 1.99 | -11.65 | 25.42 | -31.58 | 101.76 | 0.5260 | 832.0 | 674.0 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -9.02 | 25.29 | -31.71 | 96.73 | 0.5248 | 785.0 | 694.8 | |
| 0.00 | 0.61 | 0.00 | 0.36 | -11.83 | 24.93 | -32.07 | 102.00 | 0.5334 | 647.0 | 558.1 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -9.25 | 25.13 | -31.87 | 97.16 | 0.5274 | 628.0 | 511.4 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -7.93 | 25.22 | -31.78 | 94.65 | 0.5255 | 755.0 | 696.9 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -9.81 | 25.03 | -31.97 | 98.22 | 0.5292 | 815.0 | 654.1 | |
| 0.00 | 9.13 | 0.00 | 5.33 | -10.10 | 24.85 | -32.15 | 98.75 | 0.5321 | 572.0 | 744.9 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -7.05 | 25.15 | -31.85 | 92.98 | 0.5266 | 442.0 | 391.7 | |
| 8.17 | 28.63 | 4.78 | 16.76 | -10.73 | 24.74 | -32.26 | 99.91 | 0.5344 | 1018.4 | 561.0 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -9.41 | 24.86 | -32.14 | 97.45 | 0.5314 | 770.0 | 692.4 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -10.33 | 24.68 | -32.32 | 99.16 | 0.5348 | 778.0 | 653.2 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -9.31 | 24.72 | -32.28 | 97.25 | 0.5333 | 629.0 | 545.8 | |
| 1.05 | 8.70 | 0.62 | 5.09 | -9.78 | 24.57 | -32.44 | 98.12 | 0.5360 | 905.1 | 750.5 | |
| 1.49 | -12.00 | 0.88 | -12.00 | -10.80 | 24.41 | -32.59 | 99.99 | 0.5394 | 681.9 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.77 | -10.29 | 24.47 | -32.53 | 99.05 | 0.5379 | 875.0 | 739.3 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -9.88 | 24.23 | -32.77 | 98.27 | 0.5410 | 557.0 | 486.7 | |
| 3.34 | 21.52 | 1.97 | 12.69 | -10.11 | 24.02 | -32.98 | 98.66 | 0.5442 | 808.6 | 652.1 | |
| 0.00 | 1.41 | 0.00 | 0.83 | -10.40 | 23.73 | -33.27 | 99.15 | 0.5487 | 906.0 | 719.2 | |
| 0.53 | 13.17 | 0.31 | 7.83 | -10.52 | 23.35 | -33.65 | 99.33 | 0.5543 | 788.0 | 626.0 | |
| 0.00 | 2.99 | 0.00 | 1.78 | -10.76 | 23.28 | -33.72 | 99.75 | 0.5555 | 517.0 | 511.4 | |
| 0.61 | -22.00 | 0.37 | -22.00 | -10.34 | 23.30 | -33.70 | 98.99 | 0.5548 | 705.9 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -11.02 | 23.03 | -33.97 | 100.17 | 0.5594 | 562.0 | 406.3 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -9.92 | 22.84 | -34.16 | 98.18 | 0.5610 | 663.0 | 553.4 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -6.39 | 23.15 | -33.85 | 91.84 | 0.5561 | 676.0 | 512.3 | |
| 0.00 | 1.93 | 0.00 | 1.16 | -10.89 | 22.53 | -34.47 | 99.88 | 0.5664 | 838.0 | 715.0 | |
| 0.00 | 4.22 | 0.00 | 2.53 | -10.23 | 22.54 | -34.46 | 98.71 | 0.5655 | 708.0 | 636.0 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -12.96 | 22.15 | -34.85 | 103.42 | 0.5748 | 724.0 | 535.2 | |
| 0.00 | 2.11 | 0.00 | 1.27 | -10.07 | 22.45 | -34.55 | 98.42 | 0.5667 | 484.0 | 500.6 | |
| 0.70 | 37.59 | 0.42 | 22.74 | -10.88 | 22.27 | -34.73 | 99.82 | 0.5700 | 851.0 | 307.6 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -14.17 | 21.56 | -35.44 | 105.35 | 0.5852 | 588.0 | 517.6 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -10.12 | 22.18 | -34.82 | 98.47 | 0.5705 | 406.0 | 266.8 | |
| 0.00 | 1.84 | 0.00 | 1.11 | -10.36 | 22.11 | -34.89 | 98.88 | 0.5716 | 750.0 | 546.8 | |
| 11.33 | -32.00 | 6.84 | -32.00 | -11.10 | 21.98 | -35.02 | 100.17 | 0.5744 | 899.9 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -9.92 | 21.98 | -35.02 | 98.11 | 0.5731 | 706.0 | 584.1 | |
| 0.00 | 2.46 | 0.00 | 1.49 | -10.46 | 21.80 | -35.20 | 99.02 | 0.5761 | 642.0 | 489.6 | |
| 0.00 | 1.32 | 0.00 | 0.81 | -13.90 | 21.19 | -35.81 | 104.81 | 0.5897 | 635.0 | 598.6 | |
| 0.70 | -32.00 | 0.43 | -32.00 | -11.06 | 21.38 | -35.62 | 100.02 | 0.5826 | 562.1 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -9.88 | 21.28 | -35.72 | 97.97 | 0.5830 | 567.0 | 454.0 | |
| 0.00 | 0.44 | 0.00 | 0.27 | -10.41 | 21.17 | -35.83 | 98.88 | 0.5849 | 375.0 | 374.2 | |
| 0.00 | 2.46 | 0.00 | 1.50 | -9.98 | 20.96 | -36.04 | 98.12 | 0.5875 | 551.0 | 505.0 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -11.43 | 20.07 | -36.93 | 100.47 | 0.6011 | 438.0 | 329.8 | |
| 3.51 | 78.26 | 2.17 | 48.63 | -10.46 | 20.10 | -36.90 | 98.86 | 0.5998 | 940.5 | -39.9 | |
| 13.35 | -45.00 | 8.26 | -45.00 | -10.79 | 20.02 | -36.98 | 99.40 | 0.6012 | 769.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -11.45 | 19.88 | -37.12 | 100.47 | 0.6038 | 304.0 | 245.3 | |
| 0.00 | 1.41 | 0.00 | 0.87 | -10.16 | 20.03 | -36.97 | 98.35 | 0.6006 | 711.0 | 538.8 | |
| 0.26 | -45.00 | 0.16 | -45.00 | -10.39 | 19.84 | -37.16 | 98.71 | 0.6033 | 849.7 | 999999 | |
| 2.46 | -45.00 | 1.53 | -45.00 | -10.31 | 19.66 | -37.34 | 98.57 | 0.6057 | 552.8 | 999999 | |
| 3.16 | -45.00 | 1.97 | -45.00 | -10.84 | 19.36 | -37.65 | 99.41 | 0.6103 | 401.7 | 999999 | |
| 1.32 | -45.00 | 0.83 | -45.00 | -11.61 | 19.12 | -37.88 | 100.64 | 0.6143 | -728.8 | 999999 | |
| 0.00 | 2.28 | 0.00 | 1.43 | -10.90 | 19.04 | -37.97 | 99.49 | 0.6147 | 244.0 | 68.8 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -10.69 | 18.99 | -38.01 | 99.13 | 0.6152 | -354.0 | -331.0 | |
| 0.00 | 2.11 | 0.00 | 1.32 | -9.75 | 18.97 | -38.03 | 97.60 | 0.6148 | 524.0 | 326.3 | |
| 0.61 | 8.70 | 0.39 | 5.47 | -11.93 | 18.60 | -38.40 | 101.10 | 0.6216 | 399.0 | 141.5 | |
| 0.00 | 2.02 | 0.00 | 1.27 | -10.49 | 18.67 | -38.33 | 98.78 | 0.6193 | 150.0 | 186.6 | |
| 0.00 | 1.49 | 0.00 | 0.96 | -15.71 | 17.40 | -39.60 | 106.84 | 0.6435 | 617.0 | 407.9 | |
| 0.00 | 1.49 | 0.00 | 0.95 | -11.36 | 18.26 | -38.74 | 100.15 | 0.6256 | -252.0 | -230.1 | |
| 2.20 | 5.27 | 1.40 | 3.36 | -11.66 | 17.78 | -39.23 | 100.57 | 0.6323 | -894.6 | -676.4 | |
| 0.00 | 1.14 | 0.00 | 0.73 | -12.41 | 17.56 | -39.44 | 101.72 | 0.6359 | 387.0 | 343.4 | |
| 0.00 | 2.46 | 0.00 | 1.56 | -9.50 | 17.91 | -39.09 | 97.14 | 0.6290 | -802.0 | -554.5 | |
| 0.00 | 1.05 | 0.00 | 0.68 | -12.48 | 17.39 | -39.61 | 101.82 | 0.6383 | 453.0 | 382.4 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -10.74 | 17.61 | -39.39 | 99.10 | 0.6337 | -331.0 | -307.2 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -11.13 | 17.51 | -39.49 | 99.70 | 0.6354 | -383.0 | -344.9 | |
| 0.00 | 6.32 | 0.00 | 4.06 | -11.42 | 17.38 | -39.62 | 100.15 | 0.6373 | -616.0 | -578.5 | |
| 0.00 | 1.23 | 0.00 | 0.79 | -11.83 | 17.19 | -39.81 | 100.78 | 0.6402 | -459.0 | -619.1 | |
| 0.00 | 1.05 | 0.00 | 0.68 | -10.76 | 17.37 | -39.63 | 99.10 | 0.6369 | -736.0 | -568.3 | |
| 0.00 | 2.99 | 0.00 | 1.93 | -12.43 | 17.04 | -39.96 | 101.69 | 0.6428 | 323.0 | 235.4 | |
| 0.00 | 1.41 | 0.00 | 0.90 | -9.29 | 17.51 | -39.49 | 96.79 | 0.6344 | -667.0 | -639.7 | |
| 0.00 | 1.32 | 0.00 | 0.85 | -11.68 | 17.14 | -39.86 | 100.53 | 0.6407 | -521.0 | -401.1 | |
| 0.53 | 5.18 | 0.34 | 3.34 | -11.97 | 17.00 | -40.00 | 100.97 | 0.6428 | -798.8 | -622.0 | |
| 0.00 | 1.14 | 0.00 | 0.73 | -11.10 | 17.11 | -39.89 | 99.62 | 0.6405 | -705.0 | -620.6 | |
| 0.26 | 123.84 | 0.17 | 80.97 | -11.27 | 16.89 | -40.11 | 99.86 | 0.6437 | -1225.7 | -426.9 | |
| 0.00 | 1.49 | 0.00 | 0.97 | -13.93 | 16.37 | -40.63 | 103.90 | 0.6534 | 481.0 | 315.0 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -9.59 | 17.03 | -39.97 | 97.24 | 0.6408 | 361.0 | 303.1 | |
| 11.33 | -74.00 | 7.34 | -74.00 | -11.40 | 16.62 | -40.38 | 100.04 | 0.6472 | -1085.9 | 999999 | |
| 2.37 | 16.25 | 1.54 | 10.51 | -10.68 | 16.66 | -40.34 | 98.92 | 0.6462 | -974.7 | -647.0 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -9.89 | 16.63 | -40.37 | 97.70 | 0.6463 | -582.0 | -424.7 | |
| 0.00 | 1.05 | 0.00 | 0.69 | -13.14 | 16.01 | -40.99 | 102.65 | 0.6570 | -818.0 | -631.8 | |
| 8.96 | -74.00 | 5.84 | -74.00 | -11.31 | 16.19 | -40.81 | 99.86 | 0.6527 | -1015.8 | 999999 | |
| 2.46 | 249.00 | 1.61 | 165.34 | -12.20 | 15.99 | -41.01 | 101.21 | 0.6561 | -919.8 | -270.3 | |
| 0.00 | 2.02 | 0.00 | 1.32 | -11.60 | 16.06 | -40.94 | 100.30 | 0.6547 | -755.0 | -679.0 | |
| 1.49 | -74.00 | 0.97 | -74.00 | -11.06 | 16.08 | -40.92 | 99.47 | 0.6541 | -949.1 | 999999 | |
| 2.81 | -74.00 | 1.83 | -74.00 | -10.40 | 16.15 | -40.86 | 98.46 | 0.6528 | -823.7 | 999999 | |
| 6.76 | -74.00 | 4.42 | -74.00 | -10.81 | 15.96 | -41.04 | 99.07 | 0.6555 | -866.6 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.46 | -9.75 | 16.00 | -41.00 | 97.46 | 0.6544 | -272.0 | -296.4 | |
| 0.00 | 1.32 | 0.00 | 0.86 | -9.93 | 15.98 | -41.02 | 97.74 | 0.6548 | -328.0 | -350.1 | |
| 6.06 | -74.00 | 3.99 | -74.00 | -10.81 | 15.55 | -41.45 | 99.05 | 0.6608 | -687.8 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -11.07 | 15.46 | -41.54 | 99.44 | 0.6620 | -504.0 | -473.7 | |
| 29.42 | -82.00 | 19.52 | -82.00 | -12.29 | 15.11 | -41.89 | 101.25 | 0.6675 | -795.5 | 999999 | |
| 2.81 | -82.00 | 1.86 | -82.00 | -11.96 | 15.14 | -41.87 | 100.75 | 0.6669 | -795.2 | 999999 | |
| 1.05 | -82.00 | 0.70 | -82.00 | -12.64 | 14.92 | -42.08 | 101.75 | 0.6703 | -568.2 | 999999 | |
| 8.61 | -82.00 | 5.71 | -82.00 | -11.43 | 15.03 | -41.97 | 99.95 | 0.6679 | -827.6 | 999999 | |
| 3.51 | -82.00 | 2.34 | -82.00 | -11.72 | 14.77 | -42.23 | 100.36 | 0.6714 | -616.1 | 999999 | |
| 0.79 | -82.00 | 0.53 | -82.00 | -11.52 | 14.64 | -42.36 | 100.06 | 0.6729 | -392.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
