SDO HMI 2014-04-03 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.46 | 137.50 | 37.60 | 125.51 | 10.63 | 1.18 | -54.72 | 72.86 | 0.8411 | -145.0 | -2.3 | |
|
previous
or next observation for the same group /

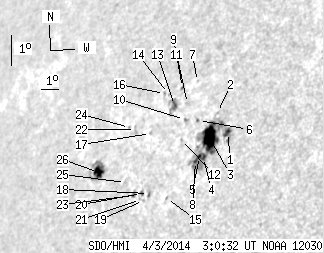

back to the solar disc SDO HMI 2014-04-03 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.99 | 79.33 | 2.56 | 69.15 | 10.77 | 3.81 | -52.09 | 71.90 | 0.8177 | -705.5 | -212.1 | |
| 0.00 | 0.88 | 0.00 | 0.77 | 11.45 | 3.13 | -52.77 | 71.32 | 0.8260 | -254.0 | -80.6 | |
| 22.49 | -1.00 | 19.64 | -1.00 | 10.69 | 2.92 | -52.98 | 72.28 | 0.8259 | -621.4 | 999999 | |
| 2.02 | -1.00 | 1.77 | -1.00 | 10.08 | 2.76 | -53.14 | 73.04 | 0.8258 | -651.0 | 999999 | |
| 1.14 | -1.00 | 1.00 | -1.00 | 10.14 | 2.54 | -53.36 | 73.04 | 0.8279 | -487.2 | 999999 | |
| 0.00 | 1.14 | 0.00 | 1.02 | 11.29 | 2.19 | -53.71 | 71.81 | 0.8341 | -271.0 | -216.8 | |
| 0.00 | 0.79 | 0.00 | 0.72 | 12.55 | 1.78 | -54.13 | 70.50 | 0.8412 | 247.0 | 236.9 | |
| 1.14 | -1.00 | 1.01 | -1.00 | 10.00 | 2.37 | -53.53 | 73.26 | 0.8292 | -350.0 | 999999 | |
| 0.00 | 1.93 | 0.00 | 1.77 | 11.89 | 1.45 | -54.46 | 71.36 | 0.8424 | 313.0 | 309.0 | |
| 0.00 | 0.61 | 0.00 | 0.56 | 11.39 | 1.43 | -54.47 | 71.93 | 0.8413 | 517.0 | 522.1 | |
| 0.35 | 1.32 | 0.33 | 1.22 | 12.43 | 1.01 | -54.89 | 70.88 | 0.8476 | 320.0 | 276.0 | |
| 0.00 | 1.05 | 0.00 | 0.96 | 10.77 | 1.44 | -54.46 | 72.65 | 0.8396 | -364.0 | -252.6 | |
| 2.11 | 10.28 | 1.96 | 9.59 | 11.90 | 0.75 | -55.15 | 71.57 | 0.8486 | 572.7 | 214.7 | |
| 0.00 | 0.70 | 0.00 | 0.66 | 12.32 | 0.29 | -55.61 | 71.24 | 0.8535 | -439.0 | -436.6 | |
| 0.00 | 0.88 | 0.00 | 0.79 | 8.97 | 1.09 | -54.81 | 74.83 | 0.8385 | -276.0 | -271.4 | |
| 0.00 | 1.41 | 0.00 | 1.34 | 12.34 | 0.06 | -55.84 | 71.28 | 0.8555 | -368.0 | -304.8 | |
| 0.00 | 1.32 | 0.00 | 1.25 | 11.13 | 359.67 | -56.23 | 72.77 | 0.8561 | -418.0 | -304.0 | |
| 0.00 | 2.81 | 0.00 | 2.61 | 9.22 | 0.07 | -55.84 | 74.83 | 0.8483 | 722.0 | 610.9 | |
| 0.00 | 0.97 | 0.00 | 0.90 | 9.03 | 359.84 | -56.06 | 75.11 | 0.8499 | 626.0 | 544.6 | |
| 0.61 | 1.76 | 0.58 | 1.65 | 9.26 | 359.67 | -56.23 | 74.89 | 0.8519 | 545.1 | 401.1 | |
| 0.00 | 0.97 | 0.00 | 0.91 | 9.08 | 359.66 | -56.24 | 75.11 | 0.8516 | 429.0 | 433.6 | |
| 0.00 | 2.64 | 0.00 | 2.58 | 11.34 | 358.76 | -57.14 | 72.79 | 0.8642 | 296.0 | 282.5 | |
| 0.70 | 2.99 | 0.67 | 2.84 | 9.24 | 359.23 | -56.67 | 75.03 | 0.8557 | 406.9 | 301.2 | |
| 0.00 | 0.97 | 0.00 | 0.96 | 11.44 | 358.39 | -57.51 | 72.79 | 0.8676 | 346.0 | 275.3 | |
| 0.00 | 1.23 | 0.00 | 1.19 | 9.70 | 358.67 | -57.23 | 74.67 | 0.8615 | 69.0 | 138.0 | |
| 7.91 | 21.52 | 8.08 | 22.07 | 10.18 | 356.97 | -58.94 | 74.58 | 0.8766 | 591.1 | 225.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
