SDO HMI 2014-04-03 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 69.41 | 350.94 | 48.93 | 247.93 | 12.49 | 13.71 | -41.64 | 65.42 | 0.7156 | -871.0 | -285.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

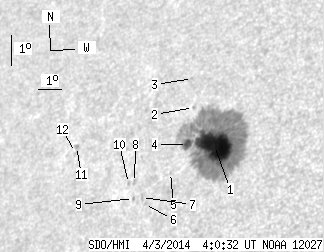

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.35 | 336.53 | 44.58 | 237.12 | 12.49 | 13.97 | -41.38 | 65.29 | 0.7128 | -1185.5 | -323.9 | |
| 0.00 | 1.14 | 0.00 | 0.83 | 13.78 | 12.83 | -42.52 | 64.22 | 0.7313 | -309.0 | -187.9 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 14.73 | 12.57 | -42.79 | 63.18 | 0.7385 | 341.0 | 330.3 | |
| 6.06 | -1.00 | 4.35 | -1.00 | 12.61 | 12.83 | -42.52 | 65.71 | 0.7260 | -563.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.63 | 11.77 | 12.28 | -43.07 | 67.06 | 0.7283 | -411.0 | -336.4 | |
| 0.00 | 0.79 | 0.00 | 0.58 | 10.85 | 11.36 | -43.99 | 68.68 | 0.7346 | 522.0 | 453.4 | |
| 0.00 | 1.85 | 0.00 | 1.35 | 11.08 | 11.19 | -44.17 | 68.46 | 0.7374 | 685.0 | 551.0 | |
| 0.00 | 1.93 | 0.00 | 1.43 | 11.58 | 10.79 | -44.57 | 68.00 | 0.7438 | 666.0 | 556.2 | |
| 0.00 | 1.05 | 0.00 | 0.78 | 11.08 | 10.84 | -44.51 | 68.62 | 0.7411 | 573.0 | 481.5 | |
| 0.00 | 1.32 | 0.00 | 0.98 | 11.57 | 10.53 | -44.82 | 68.13 | 0.7465 | 555.0 | 433.5 | |
| 0.00 | 2.55 | 0.00 | 2.00 | 12.96 | 7.90 | -47.45 | 67.54 | 0.7791 | 656.0 | 514.3 | |
| 0.00 | 1.93 | 0.00 | 1.52 | 12.77 | 7.90 | -47.45 | 67.77 | 0.7784 | 693.0 | 474.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
