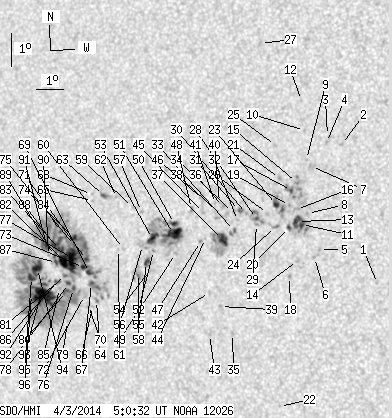

SDO HMI 2014-04-03 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 160.09 | 767.19 | 99.72 | 476.07 | -11.31 | 17.87 | -36.94 | 100.28 | 0.6003 | -125.6 | -102.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.44 | -12.68 | 27.43 | -27.38 | 105.09 | 0.4666 | 522.0 | 426.9 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -8.44 | 26.61 | -28.20 | 95.89 | 0.4718 | 798.0 | 652.6 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -8.15 | 26.15 | -28.66 | 95.24 | 0.4787 | 254.0 | 430.2 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -8.36 | 26.10 | -28.71 | 95.67 | 0.4795 | 666.0 | 472.0 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -11.55 | 25.54 | -29.27 | 102.15 | 0.4920 | 881.0 | 707.0 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -11.78 | 25.33 | -29.47 | 102.57 | 0.4954 | 815.0 | 677.4 | |
| 0.00 | 4.39 | 0.00 | 2.49 | -9.05 | 25.52 | -29.29 | 97.05 | 0.4888 | 840.0 | 598.2 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -10.45 | 25.24 | -29.57 | 99.86 | 0.4945 | 913.0 | 773.7 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -8.83 | 25.36 | -29.44 | 96.58 | 0.4910 | 732.0 | 587.9 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -7.96 | 25.37 | -29.44 | 94.80 | 0.4905 | 642.0 | 473.9 | |
| 2.81 | 22.06 | 1.60 | 12.60 | -10.76 | 24.99 | -29.81 | 100.45 | 0.4987 | 1062.2 | 701.1 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -7.05 | 25.33 | -29.47 | 92.95 | 0.4910 | 675.0 | 571.4 | |
| 5.27 | -11.00 | 3.01 | -11.00 | -10.67 | 24.86 | -29.94 | 100.23 | 0.5004 | 1000.0 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.91 | -11.84 | 24.73 | -30.08 | 102.52 | 0.5045 | 711.0 | 597.4 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -9.50 | 24.95 | -29.86 | 97.90 | 0.4977 | 938.0 | 860.5 | |
| 0.00 | 2.81 | 0.00 | 1.61 | -10.30 | 24.87 | -29.94 | 99.51 | 0.4999 | 744.0 | 702.9 | |
| 1.05 | 14.41 | 0.60 | 8.23 | -9.73 | 24.75 | -30.05 | 98.33 | 0.5009 | 937.3 | 745.9 | |
| 0.00 | 1.32 | 0.00 | 0.76 | -12.30 | 24.38 | -30.42 | 103.34 | 0.5105 | 763.0 | 637.7 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -10.17 | 24.63 | -30.17 | 99.20 | 0.5032 | 917.0 | 770.9 | |
| 1.05 | -11.00 | 0.60 | -11.00 | -10.83 | 24.53 | -30.28 | 100.48 | 0.5057 | 735.5 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.01 | -9.34 | 24.37 | -30.44 | 97.52 | 0.5063 | 596.0 | 499.1 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -16.20 | 23.42 | -31.38 | 110.33 | 0.5354 | 549.0 | 404.5 | |
| 2.64 | 15.20 | 1.52 | 8.73 | -10.12 | 24.18 | -30.62 | 99.02 | 0.5098 | 864.5 | 608.7 | |
| 0.00 | 2.81 | 0.00 | 1.62 | -10.77 | 24.07 | -30.73 | 100.29 | 0.5123 | 791.0 | 626.0 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -8.35 | 24.32 | -30.49 | 95.54 | 0.5064 | 617.0 | 510.1 | |
| 0.00 | 1.58 | 0.00 | 0.91 | -10.37 | 23.83 | -30.97 | 99.45 | 0.5152 | 670.0 | 572.6 | |
| 0.00 | 2.20 | 0.00 | 1.27 | -5.26 | 24.01 | -30.79 | 89.48 | 0.5118 | 394.0 | 447.8 | |
| 0.79 | 8.96 | 0.46 | 5.20 | -10.49 | 23.43 | -31.38 | 99.63 | 0.5214 | 904.0 | 708.4 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -10.67 | 23.41 | -31.40 | 99.98 | 0.5219 | 724.0 | 633.2 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -10.32 | 23.09 | -31.72 | 99.26 | 0.5261 | 800.0 | 675.0 | |
| 0.53 | 2.90 | 0.31 | 1.69 | -10.22 | 22.85 | -31.96 | 99.02 | 0.5295 | 908.0 | 754.6 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -10.51 | 22.74 | -32.06 | 99.56 | 0.5314 | 789.0 | 617.2 | |
| 0.53 | 4.04 | 0.31 | 2.37 | -10.81 | 22.60 | -32.21 | 100.09 | 0.5339 | 849.8 | 701.5 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -10.26 | 22.59 | -32.21 | 99.07 | 0.5333 | 565.0 | 588.6 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -13.89 | 22.09 | -32.72 | 105.66 | 0.5470 | 709.0 | 564.5 | |
| 0.00 | 1.67 | 0.00 | 0.98 | -10.06 | 22.29 | -32.52 | 98.66 | 0.5375 | 816.0 | 647.7 | |
| 7.29 | 31.37 | 4.29 | 18.48 | -11.05 | 22.13 | -32.67 | 100.47 | 0.5409 | 964.9 | 325.7 | |
| 0.00 | 5.80 | 0.00 | 3.40 | -10.36 | 22.22 | -32.59 | 99.20 | 0.5388 | 700.0 | 576.3 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -13.06 | 21.78 | -33.03 | 104.06 | 0.5495 | 792.0 | 575.5 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -9.94 | 22.16 | -32.65 | 98.41 | 0.5392 | 646.0 | 545.2 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -9.96 | 22.01 | -32.79 | 98.43 | 0.5414 | 456.0 | 432.7 | |
| 0.00 | 1.49 | 0.00 | 0.89 | -12.61 | 21.44 | -33.36 | 103.17 | 0.5533 | 515.0 | 413.8 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -13.87 | 21.24 | -33.56 | 105.38 | 0.5588 | 733.0 | 569.7 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -10.98 | 21.52 | -33.28 | 100.24 | 0.5496 | 327.0 | 306.6 | |
| 0.00 | 1.49 | 0.00 | 0.88 | -10.20 | 21.55 | -33.26 | 98.82 | 0.5484 | 636.0 | 536.1 | |
| 0.00 | 3.16 | 0.00 | 1.87 | -9.81 | 21.56 | -33.25 | 98.10 | 0.5479 | 623.0 | 425.3 | |
| 0.00 | 1.41 | 0.00 | 0.83 | -11.06 | 21.33 | -33.48 | 100.36 | 0.5525 | 554.0 | 423.9 | |
| 0.00 | 1.85 | 0.00 | 1.10 | -10.05 | 21.12 | -33.68 | 98.50 | 0.5543 | 830.0 | 681.9 | |
| 0.00 | 1.58 | 0.00 | 0.95 | -11.36 | 20.36 | -34.44 | 100.74 | 0.5665 | -418.0 | -323.1 | |
| 2.20 | 69.77 | 1.32 | 42.00 | -10.46 | 20.45 | -34.36 | 99.16 | 0.5643 | 970.2 | 221.5 | |
| 13.27 | -50.00 | 7.96 | -50.00 | -10.76 | 20.37 | -34.43 | 99.68 | 0.5657 | 929.7 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -11.22 | 19.56 | -35.24 | 100.37 | 0.5776 | -612.0 | -530.6 | |
| 6.77 | -50.00 | 4.10 | -50.00 | -10.86 | 19.58 | -35.23 | 99.75 | 0.5770 | 441.5 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -11.81 | 19.33 | -35.48 | 101.35 | 0.5817 | -670.0 | -589.4 | |
| 2.46 | 4.92 | 1.50 | 2.99 | -11.56 | 19.25 | -35.56 | 100.92 | 0.5824 | -840.1 | -660.6 | |
| 0.00 | 4.66 | 0.00 | 2.83 | -11.05 | 19.17 | -35.63 | 100.02 | 0.5828 | 405.0 | 171.4 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -10.03 | 19.27 | -35.53 | 98.27 | 0.5805 | 602.0 | 437.1 | |
| 0.00 | 12.65 | 0.00 | 7.73 | -11.87 | 18.90 | -35.90 | 101.39 | 0.5876 | -153.0 | -19.5 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -9.88 | 18.95 | -35.85 | 98.00 | 0.5849 | 545.0 | 377.2 | |
| 0.00 | 1.58 | 0.00 | 0.97 | -11.09 | 18.45 | -36.36 | 100.00 | 0.5929 | -215.0 | -158.3 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -11.11 | 18.26 | -36.55 | 100.00 | 0.5956 | 137.0 | 129.4 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -9.54 | 18.39 | -36.41 | 97.38 | 0.5925 | 244.0 | 238.9 | |
| 1.23 | 4.66 | 0.76 | 2.87 | -9.45 | 17.91 | -36.89 | 97.20 | 0.5991 | -845.0 | -568.3 | |
| 0.35 | 27.07 | 0.22 | 16.88 | -12.58 | 17.17 | -37.63 | 102.28 | 0.6122 | 448.2 | -432.8 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -9.57 | 17.47 | -37.33 | 97.38 | 0.6052 | -833.0 | -696.2 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -12.75 | 16.99 | -37.82 | 102.53 | 0.6149 | 190.0 | 124.2 | |
| 1.23 | -64.00 | 0.77 | -64.00 | -12.05 | 17.07 | -37.74 | 101.42 | 0.6129 | -907.2 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.27 | -9.39 | 17.46 | -37.34 | 97.07 | 0.6053 | -706.0 | -621.6 | |
| 2.20 | 460.64 | 1.37 | 293.84 | -11.72 | 17.04 | -37.76 | 100.87 | 0.6128 | -1120.5 | -345.5 | |
| 0.00 | 2.81 | 0.00 | 1.77 | -12.71 | 16.84 | -37.97 | 102.44 | 0.6168 | -221.0 | -201.4 | |
| 1.85 | -69.00 | 1.15 | -69.00 | -11.32 | 16.99 | -37.81 | 100.21 | 0.6131 | -1067.8 | 999999 | |
| 0.00 | 3.43 | 0.00 | 2.15 | -12.39 | 16.74 | -38.07 | 101.92 | 0.6178 | -482.0 | -480.1 | |
| 2.28 | -69.00 | 1.43 | -69.00 | -11.55 | 16.84 | -37.97 | 100.57 | 0.6154 | -1148.7 | 999999 | |
| 2.99 | -69.00 | 1.88 | -69.00 | -10.66 | 16.63 | -38.18 | 99.10 | 0.6174 | -970.8 | 999999 | |
| 1.67 | -69.00 | 1.05 | -69.00 | -10.87 | 16.60 | -38.21 | 99.44 | 0.6180 | -946.8 | 999999 | |
| 1.14 | -69.00 | 0.72 | -69.00 | -12.16 | 16.35 | -38.46 | 101.48 | 0.6227 | -889.2 | 999999 | |
| 19.68 | -69.00 | 12.40 | -69.00 | -11.26 | 16.46 | -38.35 | 100.04 | 0.6202 | -1141.0 | 999999 | |
| 1.49 | -69.00 | 0.95 | -69.00 | -11.99 | 16.18 | -38.63 | 101.19 | 0.6247 | -976.2 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -13.13 | 15.93 | -38.87 | 102.97 | 0.6295 | -640.0 | -481.0 | |
| 2.81 | -69.00 | 1.78 | -69.00 | -12.23 | 16.06 | -38.75 | 101.55 | 0.6266 | -891.1 | 999999 | |
| 0.62 | -69.00 | 0.39 | -69.00 | -11.74 | 16.10 | -38.70 | 100.79 | 0.6255 | -899.3 | 999999 | |
| 11.07 | -69.00 | 7.01 | -69.00 | -11.32 | 16.13 | -38.67 | 100.12 | 0.6246 | -1010.4 | 999999 | |
| 4.13 | -69.00 | 2.62 | -69.00 | -10.95 | 16.03 | -38.77 | 99.51 | 0.6256 | -890.3 | 999999 | |
| 0.70 | -69.00 | 0.44 | -69.00 | -10.42 | 16.12 | -38.69 | 98.66 | 0.6241 | -789.5 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.67 | -12.12 | 15.80 | -39.00 | 101.35 | 0.6299 | -750.0 | -611.6 | |
| 1.41 | 3.87 | 0.90 | 2.46 | -11.90 | 15.76 | -39.05 | 101.00 | 0.6302 | -859.8 | -704.1 | |
| 1.67 | -69.00 | 1.06 | -69.00 | -11.33 | 15.82 | -38.99 | 100.10 | 0.6289 | -618.6 | 999999 | |
| 5.18 | -69.00 | 3.29 | -69.00 | -10.79 | 15.82 | -38.98 | 99.23 | 0.6283 | -764.7 | 999999 | |
| 1.23 | -69.00 | 0.78 | -69.00 | -11.12 | 15.77 | -39.03 | 99.75 | 0.6293 | -711.2 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.45 | -11.10 | 15.54 | -39.27 | 99.70 | 0.6324 | -554.0 | -488.0 | |
| 2.81 | -69.00 | 1.79 | -69.00 | -10.77 | 15.51 | -39.29 | 99.17 | 0.6325 | -711.5 | 999999 | |
| 28.91 | -69.00 | 18.58 | -69.00 | -12.31 | 15.13 | -39.68 | 101.57 | 0.6390 | -843.4 | 999999 | |
| 2.28 | -69.00 | 1.47 | -69.00 | -11.95 | 15.19 | -39.61 | 101.01 | 0.6377 | -808.3 | 999999 | |
| 10.37 | -69.00 | 6.66 | -69.00 | -11.46 | 15.04 | -39.76 | 100.22 | 0.6393 | -808.3 | 999999 | |
| 3.87 | -69.00 | 2.50 | -69.00 | -11.71 | 14.76 | -40.05 | 100.58 | 0.6432 | -595.1 | 999999 | |
| 0.26 | -69.00 | 0.17 | -69.00 | -12.22 | 14.67 | -40.14 | 101.36 | 0.6449 | -406.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
