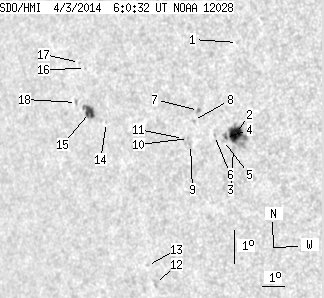

SDO HMI 2014-04-03 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.83 | 60.10 | 14.88 | 42.94 | -8.46 | 7.85 | -46.41 | 95.58 | 0.7214 | 292.3 | 256.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.54 | -5.82 | 10.53 | -43.72 | 91.68 | 0.6902 | 406.0 | 361.3 | |
| 13.53 | 29.70 | 9.29 | 20.37 | -8.53 | 10.12 | -44.14 | 95.63 | 0.6944 | 924.5 | 538.6 | |
| 0.00 | 2.55 | 0.00 | 1.75 | -9.00 | 9.96 | -44.30 | 96.31 | 0.6963 | 126.0 | 146.4 | |
| 0.62 | -2.00 | 0.43 | -2.00 | -8.61 | 9.68 | -44.58 | 95.76 | 0.6998 | 523.6 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.79 | -8.69 | 9.58 | -44.68 | 95.88 | 0.7010 | 339.0 | 348.9 | |
| 0.00 | 1.14 | 0.00 | 0.80 | -8.52 | 9.22 | -45.04 | 95.62 | 0.7055 | 569.0 | 447.3 | |
| 0.00 | 1.85 | 0.00 | 1.30 | -7.72 | 8.65 | -45.61 | 94.51 | 0.7127 | 593.0 | 484.1 | |
| 0.00 | 1.23 | 0.00 | 0.87 | -8.00 | 8.39 | -45.87 | 94.91 | 0.7157 | 544.0 | 476.1 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -8.70 | 8.15 | -46.11 | 95.90 | 0.7185 | 325.0 | 373.5 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -8.51 | 8.09 | -46.17 | 95.64 | 0.7192 | 626.0 | 605.6 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -8.50 | 7.87 | -46.39 | 95.62 | 0.7218 | 427.0 | 341.2 | |
| 0.00 | 3.34 | 0.00 | 2.48 | -12.72 | 5.73 | -48.53 | 101.33 | 0.7477 | 617.0 | 327.6 | |
| 0.00 | 1.05 | 0.00 | 0.79 | -12.15 | 5.50 | -48.76 | 100.55 | 0.7501 | 614.0 | 482.4 | |
| 0.00 | 0.26 | 0.00 | 0.20 | -7.73 | 4.49 | -49.77 | 94.69 | 0.7614 | -467.0 | -473.7 | |
| 6.68 | 11.60 | 5.16 | 8.97 | -7.37 | 3.74 | -50.52 | 94.24 | 0.7699 | -761.3 | -482.4 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -6.04 | 3.74 | -50.52 | 92.52 | 0.7706 | -377.0 | -408.4 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -5.83 | 3.48 | -50.78 | 92.27 | 0.7736 | -424.0 | -375.3 | |
| 0.00 | 1.93 | 0.00 | 1.51 | -7.01 | 3.17 | -51.09 | 93.82 | 0.7763 | -302.0 | -282.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
