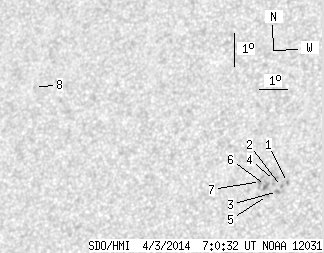

SDO HMI 2014-04-03 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.18 | 0.00 | 10.25 | 4.04 | 27.17 | -26.54 | 69.14 | 0.4787 | -658.9 | -660.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.64 | 3.91 | 28.15 | -25.56 | 68.63 | 0.4642 | -921.0 | -818.2 | |
| 0.00 | 1.32 | 0.00 | 0.74 | 3.80 | 27.95 | -25.76 | 69.01 | 0.4664 | -938.0 | -776.5 | |
| 0.00 | 2.02 | 0.00 | 1.13 | 3.65 | 27.82 | -25.89 | 69.41 | 0.4674 | -1022.0 | -841.9 | |
| 0.00 | 3.60 | 0.00 | 2.02 | 3.99 | 27.71 | -26.00 | 68.82 | 0.4709 | -606.0 | -678.2 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 3.55 | 27.49 | -26.22 | 69.87 | 0.4716 | -805.0 | -651.7 | |
| 0.00 | 3.78 | 0.00 | 2.12 | 3.86 | 27.41 | -26.30 | 69.32 | 0.4744 | -974.0 | -818.3 | |
| 0.00 | 4.48 | 0.00 | 2.52 | 3.99 | 27.24 | -26.47 | 69.19 | 0.4776 | -627.0 | -599.6 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 7.35 | 19.12 | -34.59 | 68.80 | 0.6062 | 622.0 | 563.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
