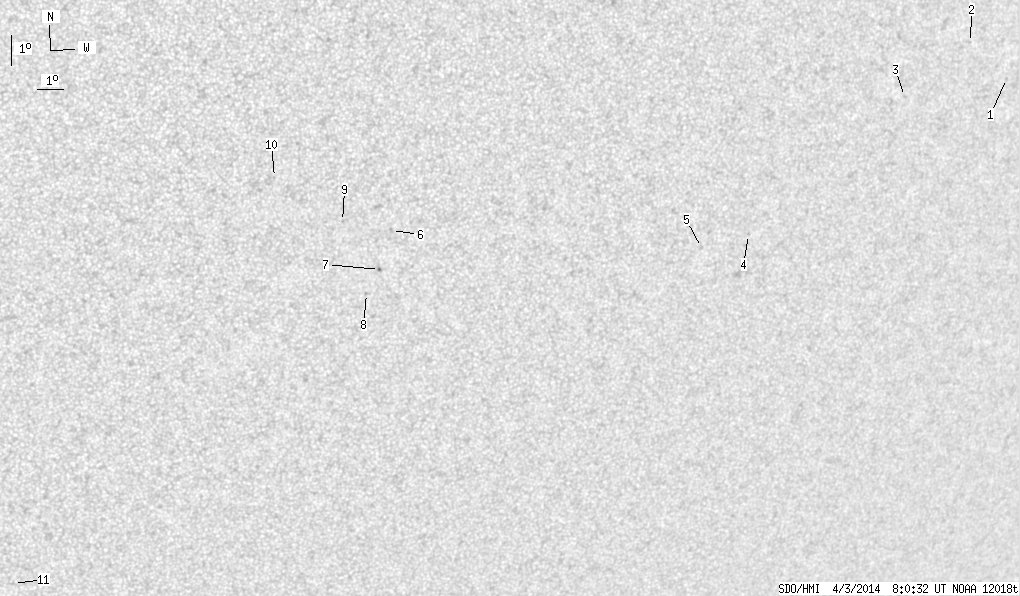

SDO HMI 2014-04-03 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.17 | 0.00 | 8.21 | -27.01 | 83.19 | 30.03 | 228.60 | 0.5958 | -90.5 | -76.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.84 | -21.21 | 99.77 | 46.60 | 246.97 | 0.7384 | 503.0 | 426.5 | |
| 0.00 | 1.05 | 0.00 | 0.74 | -20.23 | 97.74 | 44.57 | 247.78 | 0.7136 | 511.0 | 355.3 | |
| 0.00 | 1.05 | 0.00 | 0.72 | -22.09 | 95.48 | 42.32 | 244.53 | 0.6933 | 682.0 | 544.3 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -26.83 | 90.56 | 37.40 | 235.73 | 0.6582 | 427.0 | 332.4 | |
| 0.00 | 1.14 | 0.00 | 0.74 | -27.36 | 88.79 | 35.63 | 233.98 | 0.6419 | 536.0 | 473.5 | |
| 0.00 | 2.11 | 0.00 | 1.22 | -27.43 | 76.73 | 23.57 | 224.05 | 0.5124 | -671.0 | -471.6 | |
| 0.00 | 1.41 | 0.00 | 0.82 | -28.70 | 76.58 | 23.42 | 221.99 | 0.5231 | -867.0 | -760.1 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -29.49 | 76.28 | 23.12 | 220.52 | 0.5280 | -744.0 | -571.8 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -27.21 | 74.89 | 21.73 | 222.28 | 0.4913 | -676.0 | -552.5 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -25.90 | 72.21 | 19.05 | 220.90 | 0.4503 | -656.0 | -525.6 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -39.76 | 64.94 | 11.77 | 195.88 | 0.5755 | -40.0 | -86.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
