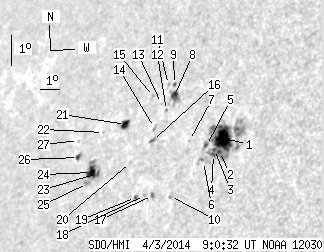

SDO HMI 2014-04-03 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.58 | 158.44 | 46.10 | 133.29 | 10.68 | 1.25 | -51.36 | 71.74 | 0.8096 | -170.9 | -112.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.74 | 90.16 | 23.09 | 72.38 | 10.63 | 3.35 | -49.26 | 71.10 | 0.7894 | -753.6 | -336.2 | |
| 1.23 | -1.00 | 0.99 | -1.00 | 10.24 | 3.25 | -49.37 | 71.62 | 0.7892 | -679.6 | 999999 | |
| 0.88 | -1.00 | 0.71 | -1.00 | 10.32 | 3.00 | -49.62 | 71.61 | 0.7920 | -509.7 | 999999 | |
| 1.23 | -1.00 | 0.99 | -1.00 | 10.17 | 2.98 | -49.63 | 71.80 | 0.7917 | -495.5 | 999999 | |
| 1.14 | -1.00 | 0.93 | -1.00 | 10.48 | 2.58 | -50.04 | 71.56 | 0.7967 | -227.5 | 999999 | |
| 0.00 | 7.38 | 0.00 | 6.00 | 9.99 | 2.55 | -50.07 | 72.17 | 0.7956 | -122.0 | -163.0 | |
| 0.00 | 0.62 | 0.00 | 0.51 | 10.72 | 1.71 | -50.91 | 71.58 | 0.8060 | -429.0 | -348.0 | |
| 3.95 | 10.28 | 3.41 | 8.87 | 12.23 | 0.58 | -52.03 | 70.19 | 0.8212 | 716.2 | 357.6 | |
| 0.62 | 1.49 | 0.53 | 1.30 | 12.58 | 0.48 | -52.14 | 69.81 | 0.8231 | 134.7 | 206.2 | |
| 0.00 | 1.23 | 0.00 | 1.03 | 9.03 | 1.15 | -51.47 | 73.79 | 0.8068 | -406.0 | -354.9 | |
| 0.00 | 0.88 | 0.00 | 0.77 | 12.61 | 0.17 | -52.45 | 69.88 | 0.8261 | -356.0 | -261.1 | |
| 0.00 | 0.97 | 0.00 | 0.84 | 11.78 | 0.30 | -52.31 | 70.80 | 0.8225 | -234.0 | -209.8 | |
| 0.00 | 0.26 | 0.00 | 0.23 | 12.03 | 359.98 | -52.64 | 70.62 | 0.8262 | -172.0 | -113.7 | |
| 0.00 | 2.28 | 0.00 | 1.99 | 11.29 | 359.82 | -52.79 | 71.53 | 0.8256 | -420.0 | -298.8 | |
| 0.00 | 1.23 | 0.00 | 1.09 | 12.29 | 359.50 | -53.12 | 70.48 | 0.8314 | -175.0 | -205.9 | |
| 0.70 | 2.37 | 0.61 | 2.07 | 10.89 | 359.83 | -52.79 | 72.01 | 0.8245 | -557.4 | -423.3 | |
| 0.62 | 2.11 | 0.52 | 1.80 | 9.14 | 0.23 | -52.39 | 73.94 | 0.8160 | 712.7 | 656.8 | |
| 0.00 | 1.14 | 0.00 | 0.98 | 9.18 | 359.82 | -52.80 | 74.02 | 0.8201 | 615.0 | 480.9 | |
| 0.62 | 1.85 | 0.54 | 1.61 | 9.16 | 359.37 | -53.25 | 74.18 | 0.8243 | 440.0 | 344.6 | |
| 0.00 | 0.79 | 0.00 | 0.70 | 10.29 | 358.85 | -53.77 | 73.01 | 0.8320 | 226.0 | 247.1 | |
| 5.01 | 8.00 | 4.55 | 7.28 | 11.53 | 358.25 | -54.36 | 71.76 | 0.8406 | 535.1 | 134.6 | |
| 0.00 | 0.79 | 0.00 | 0.74 | 11.39 | 357.12 | -55.50 | 72.27 | 0.8503 | -386.0 | -382.3 | |
| 0.79 | 17.84 | 0.73 | 16.65 | 10.11 | 357.14 | -55.47 | 73.72 | 0.8470 | 643.7 | 464.9 | |
| 7.56 | -23.00 | 7.06 | -23.00 | 10.18 | 356.80 | -55.81 | 73.75 | 0.8502 | 600.5 | 999999 | |
| 0.00 | 2.55 | 0.00 | 2.39 | 9.85 | 356.67 | -55.95 | 74.16 | 0.8506 | -237.0 | -160.5 | |
| 1.49 | 3.34 | 1.44 | 3.21 | 10.73 | 355.93 | -56.69 | 73.37 | 0.8590 | 528.1 | 428.6 | |
| 0.00 | 0.88 | 0.00 | 0.85 | 11.27 | 355.77 | -56.85 | 72.80 | 0.8616 | 445.0 | 399.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
