SDO HMI 2014-04-03 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.15 | 0.00 | 2.31 | 18.16 | 91.70 | 40.73 | 302.20 | 0.7342 | -305.5 | -285.0 | |
|
previous
or next observation for the same group /

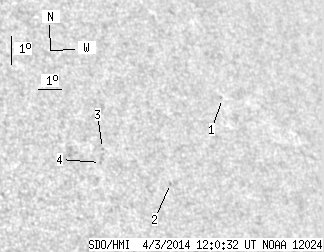

back to the solar disc SDO HMI 2014-04-03 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.49 | 20.22 | 95.44 | 44.47 | 302.46 | 0.7814 | 391.0 | 354.7 | |
| 0.00 | 1.05 | 0.00 | 0.77 | 17.18 | 92.22 | 41.25 | 300.67 | 0.7347 | -584.0 | -452.8 | |
| 0.00 | 0.79 | 0.00 | 0.56 | 18.13 | 89.68 | 38.70 | 303.41 | 0.7142 | -558.0 | -485.1 | |
| 0.00 | 0.70 | 0.00 | 0.49 | 17.66 | 89.47 | 38.50 | 302.96 | 0.7093 | -471.0 | -428.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
