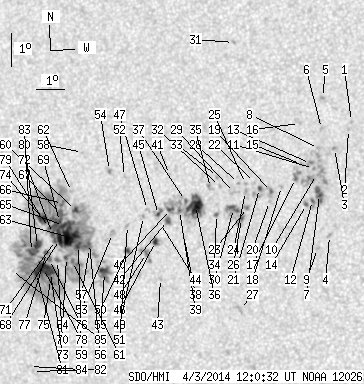

SDO HMI 2014-04-03 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.40 | 789.75 | 89.25 | 468.95 | -11.27 | 17.67 | -33.31 | 100.81 | 0.5496 | -103.4 | -145.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.53 | -8.42 | 26.47 | -24.50 | 96.27 | 0.4145 | 839.0 | 683.9 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -8.65 | 26.36 | -24.62 | 96.82 | 0.4165 | 794.0 | 566.8 | |
| 0.00 | 1.67 | 0.00 | 0.91 | -9.20 | 25.85 | -25.13 | 98.04 | 0.4251 | 970.0 | 834.9 | |
| 0.00 | 2.81 | 0.00 | 1.55 | -11.80 | 25.45 | -25.53 | 103.94 | 0.4365 | 777.0 | 600.6 | |
| 0.00 | 1.84 | 0.00 | 1.01 | -7.65 | 25.56 | -25.42 | 94.37 | 0.4284 | 852.0 | 699.0 | |
| 0.00 | 2.02 | 0.00 | 1.11 | -8.58 | 25.46 | -25.52 | 96.53 | 0.4305 | 727.0 | 625.4 | |
| 5.89 | 11.42 | 3.24 | 6.28 | -10.55 | 25.23 | -25.75 | 101.03 | 0.4369 | 1023.4 | 795.3 | |
| 0.00 | 1.32 | 0.00 | 0.72 | -9.17 | 25.31 | -25.66 | 97.88 | 0.4334 | 912.0 | 807.9 | |
| 0.00 | 1.58 | 0.00 | 0.87 | -12.17 | 25.00 | -25.97 | 104.60 | 0.4443 | 763.0 | 554.5 | |
| 0.00 | 25.92 | 0.00 | 14.26 | -9.95 | 25.18 | -25.79 | 99.64 | 0.4366 | 910.0 | 858.7 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -9.76 | 25.09 | -25.88 | 99.20 | 0.4376 | 997.0 | 886.1 | |
| 0.70 | 3.51 | 0.39 | 1.94 | -10.72 | 24.97 | -26.00 | 101.34 | 0.4411 | 770.8 | 601.0 | |
| 0.00 | 3.95 | 0.00 | 2.18 | -9.61 | 25.01 | -25.97 | 98.82 | 0.4387 | 1017.0 | 814.7 | |
| 0.79 | 2.55 | 0.44 | 1.41 | -10.83 | 24.76 | -26.21 | 101.53 | 0.4446 | 655.3 | 494.5 | |
| 0.00 | 2.02 | 0.00 | 1.12 | -9.62 | 24.70 | -26.27 | 98.80 | 0.4435 | 592.0 | 511.7 | |
| 0.00 | 1.76 | 0.00 | 0.97 | -8.39 | 24.73 | -26.24 | 96.01 | 0.4417 | 661.0 | 451.7 | |
| 0.79 | 7.91 | 0.44 | 4.37 | -10.03 | 24.46 | -26.51 | 99.66 | 0.4478 | 898.9 | 498.7 | |
| 0.00 | 1.58 | 0.00 | 0.88 | -10.25 | 23.96 | -27.01 | 100.03 | 0.4558 | 734.0 | 563.6 | |
| 0.70 | 4.92 | 0.39 | 2.74 | -10.38 | 23.61 | -27.37 | 100.24 | 0.4614 | 1016.0 | 820.9 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -10.68 | 23.51 | -27.47 | 100.85 | 0.4634 | 802.0 | 648.5 | |
| 1.32 | 7.29 | 0.74 | 4.08 | -10.27 | 23.20 | -27.77 | 99.91 | 0.4673 | 875.6 | 723.2 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -10.08 | 23.05 | -27.92 | 99.47 | 0.4694 | 681.0 | 494.4 | |
| 0.44 | 3.16 | 0.25 | 1.78 | -10.82 | 22.73 | -28.24 | 100.96 | 0.4753 | 929.2 | 749.9 | |
| 0.00 | 2.37 | 0.00 | 1.33 | -10.33 | 22.71 | -28.26 | 99.94 | 0.4748 | 869.0 | 644.6 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -10.09 | 22.74 | -28.24 | 99.44 | 0.4741 | 761.0 | 581.8 | |
| 1.14 | 22.14 | 0.64 | 12.50 | -11.14 | 22.49 | -28.48 | 101.57 | 0.4796 | 821.5 | 572.9 | |
| 0.00 | 4.22 | 0.00 | 2.40 | -13.87 | 22.09 | -28.89 | 107.00 | 0.4925 | 694.0 | 604.7 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -10.08 | 22.50 | -28.48 | 99.37 | 0.4778 | 856.0 | 732.0 | |
| 0.00 | 3.25 | 0.00 | 1.83 | -10.34 | 22.33 | -28.64 | 99.88 | 0.4806 | 650.0 | 552.0 | |
| 3.87 | -26.00 | 2.18 | -26.00 | -10.82 | 22.25 | -28.73 | 100.86 | 0.4827 | 835.8 | 999999 | |
| 0.00 | 1.67 | 0.00 | 0.94 | -5.85 | 22.65 | -28.32 | 90.45 | 0.4739 | 766.0 | 605.1 | |
| 0.00 | 1.67 | 0.00 | 0.95 | -10.14 | 21.83 | -29.14 | 99.36 | 0.4879 | 760.0 | 627.8 | |
| 0.00 | 2.11 | 0.00 | 1.20 | -9.83 | 21.79 | -29.18 | 98.73 | 0.4881 | 695.0 | 607.1 | |
| 0.70 | 2.37 | 0.40 | 1.35 | -10.97 | 21.64 | -29.34 | 101.02 | 0.4920 | 664.8 | 540.8 | |
| 0.00 | 3.34 | 0.00 | 1.90 | -10.15 | 21.51 | -29.46 | 99.33 | 0.4926 | 581.0 | 615.0 | |
| 20.47 | 60.53 | 11.71 | 34.73 | -10.66 | 20.93 | -30.04 | 100.25 | 0.5020 | 963.0 | 367.5 | |
| 0.70 | -36.00 | 0.40 | -36.00 | -10.49 | 20.60 | -30.38 | 99.85 | 0.5067 | 693.4 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -11.63 | 20.43 | -30.54 | 102.04 | 0.5110 | -454.0 | -367.5 | |
| 1.05 | -36.00 | 0.61 | -36.00 | -10.78 | 20.35 | -30.62 | 100.37 | 0.5107 | 667.8 | 999999 | |
| 2.28 | -36.00 | 1.32 | -36.00 | -10.73 | 20.04 | -30.94 | 100.21 | 0.5153 | 616.9 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -9.68 | 20.12 | -30.86 | 98.18 | 0.5128 | 623.0 | 506.4 | |
| 2.46 | 5.18 | 1.42 | 3.00 | -11.05 | 19.89 | -31.08 | 100.81 | 0.5179 | 781.9 | 540.5 | |
| 0.00 | 1.58 | 0.00 | 0.92 | -12.78 | 19.42 | -31.56 | 103.99 | 0.5281 | -481.0 | -415.8 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -11.13 | 19.63 | -31.34 | 100.91 | 0.5218 | 323.0 | 249.2 | |
| 1.14 | 5.71 | 0.66 | 3.31 | -10.85 | 19.59 | -31.38 | 100.38 | 0.5220 | 516.0 | 472.9 | |
| 2.64 | 5.71 | 1.53 | 3.32 | -11.66 | 19.39 | -31.59 | 101.86 | 0.5263 | -847.7 | -573.3 | |
| 0.00 | 2.11 | 0.00 | 1.23 | -10.68 | 19.22 | -31.75 | 99.98 | 0.5272 | 523.0 | 394.6 | |
| 0.97 | 8.26 | 0.56 | 4.83 | -12.00 | 19.02 | -31.96 | 102.42 | 0.5322 | -792.5 | -273.3 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -10.88 | 19.05 | -31.92 | 100.33 | 0.5299 | 545.0 | 400.9 | |
| 2.20 | 4.48 | 1.29 | 2.64 | -11.87 | 18.35 | -32.63 | 102.03 | 0.5416 | -936.2 | -720.5 | |
| 0.00 | 1.76 | 0.00 | 1.03 | -11.12 | 18.44 | -32.53 | 100.67 | 0.5390 | -286.0 | -243.1 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -9.64 | 18.51 | -32.46 | 97.93 | 0.5364 | 548.0 | 453.0 | |
| 0.00 | 3.43 | 0.00 | 2.02 | -11.32 | 17.87 | -33.10 | 100.94 | 0.5476 | -388.0 | -435.6 | |
| 0.00 | 2.46 | 0.00 | 1.45 | -9.43 | 17.99 | -32.98 | 97.49 | 0.5438 | -996.0 | -812.9 | |
| 8.17 | 24.16 | 4.86 | 14.38 | -12.48 | 17.41 | -33.56 | 102.93 | 0.5559 | -492.0 | -285.4 | |
| 0.79 | 512.37 | 0.47 | 310.86 | -11.57 | 16.99 | -33.98 | 101.24 | 0.5604 | -1034.9 | -394.9 | |
| 0.26 | -56.00 | 0.16 | -56.00 | -11.72 | 16.97 | -34.00 | 101.50 | 0.5610 | -1118.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -8.83 | 17.07 | -33.90 | 96.33 | 0.5567 | -729.0 | -562.4 | |
| 3.16 | -56.00 | 1.90 | -56.00 | -11.61 | 16.58 | -34.40 | 101.22 | 0.5663 | -1125.1 | 999999 | |
| 2.90 | -56.00 | 1.74 | -56.00 | -10.55 | 16.61 | -34.36 | 99.36 | 0.5646 | -998.9 | 999999 | |
| 1.23 | -56.00 | 0.74 | -56.00 | -12.07 | 16.29 | -34.69 | 101.99 | 0.5711 | -1039.4 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.05 | -9.97 | 16.54 | -34.44 | 98.33 | 0.5651 | -700.0 | -648.5 | |
| 14.50 | -56.00 | 8.73 | -56.00 | -11.35 | 16.28 | -34.69 | 100.72 | 0.5702 | -1280.4 | 999999 | |
| 1.58 | -56.00 | 0.95 | -56.00 | -11.94 | 16.08 | -34.89 | 101.72 | 0.5738 | -935.6 | 999999 | |
| 4.92 | -56.00 | 2.97 | -56.00 | -10.97 | 16.11 | -34.87 | 100.04 | 0.5721 | -934.0 | 999999 | |
| 1.84 | -56.00 | 1.11 | -56.00 | -10.31 | 16.16 | -34.81 | 98.89 | 0.5707 | -803.4 | 999999 | |
| 5.18 | -56.00 | 3.13 | -56.00 | -10.61 | 16.05 | -34.93 | 99.39 | 0.5726 | -821.2 | 999999 | |
| 4.57 | -56.00 | 2.76 | -56.00 | -11.38 | 15.90 | -35.07 | 100.72 | 0.5755 | -969.1 | 999999 | |
| 1.23 | -56.00 | 0.74 | -56.00 | -10.84 | 15.98 | -35.00 | 99.79 | 0.5738 | -908.2 | 999999 | |
| 1.14 | 3.34 | 0.69 | 2.02 | -12.01 | 15.73 | -35.24 | 101.78 | 0.5787 | -921.0 | -776.8 | |
| 2.11 | -56.00 | 1.28 | -56.00 | -11.40 | 15.75 | -35.23 | 100.73 | 0.5777 | -672.8 | 999999 | |
| 1.41 | -56.00 | 0.85 | -56.00 | -11.19 | 15.67 | -35.31 | 100.35 | 0.5785 | -672.4 | 999999 | |
| 4.83 | -56.00 | 2.94 | -56.00 | -12.35 | 15.42 | -35.56 | 102.31 | 0.5836 | -935.1 | 999999 | |
| 0.26 | -56.00 | 0.16 | -56.00 | -11.00 | 15.62 | -35.36 | 100.02 | 0.5790 | -734.0 | 999999 | |
| 2.20 | -56.00 | 1.34 | -56.00 | -12.56 | 15.38 | -35.59 | 102.66 | 0.5844 | -821.9 | 999999 | |
| 1.49 | -56.00 | 0.91 | -56.00 | -11.96 | 15.44 | -35.53 | 101.64 | 0.5827 | -925.5 | 999999 | |
| 1.58 | -56.00 | 0.96 | -56.00 | -11.74 | 15.36 | -35.61 | 101.26 | 0.5835 | -848.0 | 999999 | |
| 12.48 | -56.00 | 7.62 | -56.00 | -12.21 | 15.17 | -35.80 | 102.03 | 0.5868 | -891.6 | 999999 | |
| 7.12 | -56.00 | 4.33 | -56.00 | -10.71 | 15.36 | -35.62 | 99.49 | 0.5823 | -621.1 | 999999 | |
| 7.38 | -56.00 | 4.51 | -56.00 | -11.51 | 15.05 | -35.92 | 100.81 | 0.5875 | -845.5 | 999999 | |
| 3.25 | -56.00 | 1.99 | -56.00 | -12.35 | 14.89 | -36.09 | 102.20 | 0.5909 | -717.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -15.28 | 14.19 | -36.78 | 106.92 | 0.6060 | -597.0 | -518.0 | |
| 4.57 | -56.00 | 2.80 | -56.00 | -11.67 | 14.80 | -36.17 | 101.06 | 0.5911 | -643.7 | 999999 | |
| 0.00 | 2.37 | 0.00 | 1.48 | -15.12 | 14.11 | -36.86 | 106.64 | 0.6067 | -368.0 | -251.4 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -12.19 | 13.95 | -37.02 | 101.79 | 0.6034 | -266.0 | -296.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
