SDO HMI 2014-04-03 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.35 | 191.14 | 41.93 | 150.69 | 10.85 | 1.58 | -48.30 | 70.45 | 0.7795 | -56.8 | -170.0 | |
|
previous
or next observation for the same group /

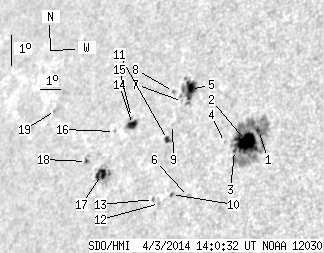

back to the solar disc SDO HMI 2014-04-03 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.49 | 117.52 | 1.12 | 88.78 | 10.87 | 4.03 | -45.85 | 69.48 | 0.7546 | -736.7 | -351.0 | |
| 22.31 | -1.00 | 16.89 | -1.00 | 10.57 | 3.56 | -46.32 | 70.06 | 0.7586 | -814.7 | 999999 | |
| 1.05 | -1.00 | 0.80 | -1.00 | 10.33 | 3.07 | -46.81 | 70.55 | 0.7629 | -336.8 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.47 | 10.62 | 2.56 | -47.31 | 70.39 | 0.7693 | -238.0 | -234.1 | |
| 11.16 | 25.82 | 9.08 | 21.07 | 12.45 | 0.57 | -49.31 | 68.93 | 0.7957 | 625.3 | 93.3 | |
| 0.00 | 2.20 | 0.00 | 1.72 | 9.06 | 1.22 | -48.66 | 72.82 | 0.7783 | -402.0 | -347.8 | |
| 0.00 | 0.97 | 0.00 | 0.79 | 12.10 | 0.28 | -49.60 | 69.46 | 0.7974 | -194.0 | -294.2 | |
| 0.00 | 1.23 | 0.00 | 1.02 | 12.46 | 359.75 | -50.12 | 69.23 | 0.8036 | -439.0 | -364.5 | |
| 0.00 | 0.88 | 0.00 | 0.72 | 11.41 | 359.97 | -49.90 | 70.40 | 0.7982 | -353.0 | -314.6 | |
| 0.53 | 1.67 | 0.42 | 1.33 | 9.19 | 0.40 | -49.47 | 72.94 | 0.7872 | 592.3 | 541.6 | |
| 2.02 | 3.43 | 1.65 | 2.80 | 10.95 | 359.84 | -50.03 | 71.00 | 0.7981 | -540.7 | -437.0 | |
| 0.00 | 1.49 | 0.00 | 1.21 | 8.96 | 359.88 | -50.00 | 73.40 | 0.7918 | 455.0 | 444.2 | |
| 0.00 | 1.67 | 0.00 | 1.36 | 9.11 | 359.56 | -50.31 | 73.32 | 0.7954 | 310.0 | 280.4 | |
| 5.36 | 7.64 | 4.59 | 6.55 | 11.59 | 357.98 | -51.90 | 70.90 | 0.8180 | 566.6 | 239.7 | |
| 0.00 | 0.97 | 0.00 | 0.83 | 11.82 | 357.87 | -52.01 | 70.67 | 0.8197 | 190.0 | 92.9 | |
| 0.00 | 1.32 | 0.00 | 1.15 | 11.45 | 357.11 | -52.77 | 71.35 | 0.8258 | -457.0 | -338.4 | |
| 7.64 | 19.50 | 6.67 | 16.98 | 10.14 | 356.78 | -53.10 | 72.99 | 0.8254 | 601.3 | 417.3 | |
| 0.79 | 2.20 | 0.71 | 1.97 | 10.63 | 355.88 | -54.00 | 72.70 | 0.8349 | 532.2 | 385.9 | |
| 0.00 | 2.02 | 0.00 | 1.94 | 12.43 | 353.68 | -56.19 | 71.31 | 0.8587 | 363.0 | 327.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
