SDO HMI 2014-04-03 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.46 | 0.00 | 7.89 | -26.85 | 82.10 | 32.78 | 231.31 | 0.6123 | -293.7 | -233.4 | |
|
previous
or next observation for the same group /

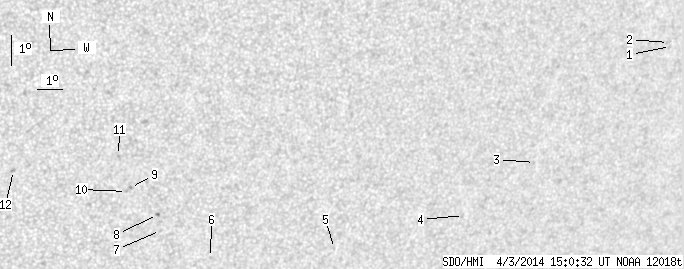

back to the solar disc SDO HMI 2014-04-03 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.58 | -22.25 | 95.69 | 46.36 | 245.51 | 0.7384 | 488.0 | 420.1 | |
| 0.00 | 1.84 | 0.00 | 1.35 | -22.14 | 95.54 | 46.22 | 245.62 | 0.7365 | 588.0 | 545.2 | |
| 0.00 | 0.44 | 0.00 | 0.31 | -26.29 | 91.20 | 41.87 | 238.57 | 0.7037 | 490.0 | 430.8 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -28.17 | 88.86 | 39.54 | 234.97 | 0.6877 | 514.0 | 397.5 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -29.57 | 83.90 | 34.57 | 230.24 | 0.6443 | -570.0 | -487.9 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -30.13 | 79.03 | 29.70 | 225.91 | 0.5989 | -541.0 | -432.6 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -29.35 | 76.82 | 27.49 | 225.10 | 0.5702 | -419.0 | -407.0 | |
| 0.00 | 1.32 | 0.00 | 0.79 | -28.84 | 76.55 | 27.23 | 225.60 | 0.5631 | -847.0 | -760.7 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -28.02 | 75.30 | 25.98 | 225.62 | 0.5431 | -886.0 | -757.2 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -28.15 | 75.18 | 25.86 | 225.31 | 0.5431 | -762.0 | -636.2 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -27.01 | 74.60 | 25.27 | 226.45 | 0.5269 | -743.0 | -538.7 | |
| 0.00 | 1.84 | 0.00 | 1.05 | -27.65 | 70.88 | 21.55 | 221.38 | 0.4942 | -836.0 | -679.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
