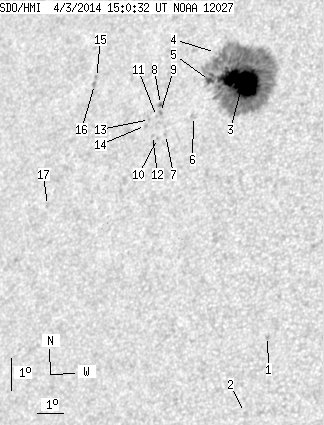

SDO HMI 2014-04-03 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.62 | 373.61 | 40.44 | 241.85 | 12.37 | 13.80 | -35.52 | 62.02 | 0.6449 | -683.5 | -304.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.76 | 0.00 | 1.06 | 4.47 | 15.78 | -33.54 | 72.84 | 0.5787 | 674.0 | 585.0 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 2.21 | 15.04 | -34.29 | 76.96 | 0.5801 | 575.0 | 453.1 | |
| 59.02 | 352.97 | 38.07 | 228.05 | 12.45 | 14.05 | -35.28 | 61.74 | 0.6425 | -1187.3 | -358.4 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 13.48 | 12.85 | -36.47 | 61.12 | 0.6625 | -260.0 | -116.0 | |
| 2.99 | -3.00 | 1.96 | -3.00 | 12.60 | 12.77 | -36.55 | 62.37 | 0.6583 | -585.3 | 999999 | |
| 0.00 | 2.63 | 0.00 | 1.73 | 11.50 | 12.33 | -36.99 | 64.17 | 0.6574 | 136.0 | 99.4 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 11.01 | 11.33 | -38.00 | 65.46 | 0.6667 | 680.0 | 588.4 | |
| 0.61 | 1.76 | 0.41 | 1.18 | 11.97 | 10.98 | -38.35 | 64.33 | 0.6757 | 843.0 | 701.6 | |
| 0.00 | 1.67 | 0.00 | 1.12 | 11.72 | 11.02 | -38.31 | 64.65 | 0.6739 | 849.0 | 713.8 | |
| 0.00 | 0.88 | 0.00 | 0.58 | 10.90 | 11.03 | -38.29 | 65.77 | 0.6696 | 653.0 | 604.2 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 11.60 | 10.88 | -38.44 | 64.89 | 0.6749 | 802.0 | 673.2 | |
| 0.00 | 1.23 | 0.00 | 0.82 | 11.01 | 10.82 | -38.51 | 65.74 | 0.6727 | 600.0 | 429.9 | |
| 0.00 | 0.97 | 0.00 | 0.65 | 11.53 | 10.62 | -38.71 | 65.14 | 0.6776 | 566.0 | 504.9 | |
| 0.00 | 1.23 | 0.00 | 0.83 | 11.35 | 10.49 | -38.83 | 65.46 | 0.6782 | 558.0 | 426.9 | |
| 0.00 | 1.49 | 0.00 | 1.05 | 13.03 | 8.22 | -41.11 | 64.47 | 0.7122 | 443.0 | 378.4 | |
| 0.00 | 2.46 | 0.00 | 1.73 | 12.81 | 8.18 | -41.14 | 64.77 | 0.7115 | 586.0 | 546.1 | |
| 0.00 | 1.49 | 0.00 | 1.05 | 9.13 | 6.89 | -42.44 | 70.27 | 0.7101 | 406.0 | 389.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
