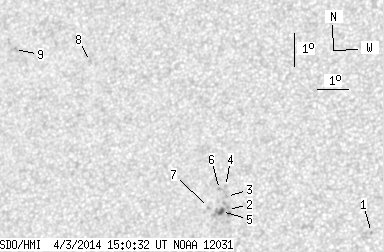

SDO HMI 2014-04-03 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.84 | 23.10 | 1.00 | 12.70 | 5.06 | 26.59 | -22.73 | 63.84 | 0.4302 | -347.3 | -341.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.51 | 2.88 | 32.72 | -16.61 | 61.25 | 0.3270 | 686.0 | 526.8 | |
| 0.00 | 5.36 | 0.00 | 2.89 | 3.75 | 28.13 | -21.19 | 64.93 | 0.4000 | -888.0 | -817.1 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 4.15 | 28.09 | -21.24 | 64.08 | 0.4034 | -954.0 | -776.1 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 4.46 | 28.05 | -21.28 | 63.45 | 0.4062 | -807.0 | -691.6 | |
| 1.84 | 6.50 | 1.00 | 3.52 | 3.70 | 27.94 | -21.39 | 65.26 | 0.4024 | -1065.0 | -770.0 | |
| 0.00 | 1.58 | 0.00 | 0.86 | 4.37 | 27.86 | -21.47 | 63.84 | 0.4083 | -797.0 | -677.7 | |
| 0.00 | 1.49 | 0.00 | 0.81 | 3.84 | 27.52 | -21.81 | 65.39 | 0.4095 | -642.0 | -545.4 | |
| 0.00 | 1.93 | 0.00 | 1.10 | 8.52 | 23.40 | -25.93 | 60.33 | 0.4997 | 678.0 | 523.2 | |
| 0.00 | 3.51 | 0.00 | 2.06 | 9.03 | 20.76 | -28.56 | 61.85 | 0.5377 | 663.0 | 572.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
