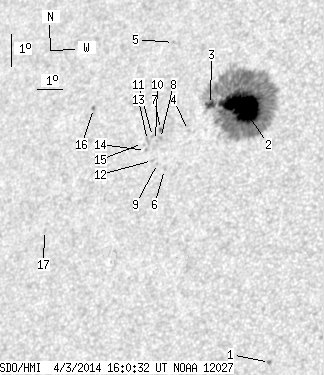

SDO HMI 2014-04-03 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.79 | 384.02 | 40.28 | 246.82 | 12.38 | 13.79 | -34.98 | 61.63 | 0.6387 | -709.6 | -308.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.93 | 0.00 | 1.16 | 4.44 | 15.81 | -32.96 | 72.59 | 0.5707 | 742.0 | 585.4 | |
| 57.08 | 364.80 | 36.56 | 234.06 | 12.44 | 14.06 | -34.71 | 61.37 | 0.6358 | -1259.9 | -361.7 | |
| 5.27 | -2.00 | 3.43 | -2.00 | 12.62 | 12.79 | -35.98 | 61.97 | 0.6518 | -583.3 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.69 | 11.86 | 12.07 | -36.70 | 63.50 | 0.6559 | 289.0 | 204.6 | |
| 0.00 | 0.97 | 0.00 | 0.65 | 14.72 | 10.98 | -37.80 | 60.33 | 0.6846 | 457.0 | 361.7 | |
| 0.00 | 0.79 | 0.00 | 0.52 | 10.69 | 11.33 | -37.45 | 65.58 | 0.6585 | 585.0 | 488.7 | |
| 0.44 | 1.93 | 0.29 | 1.28 | 11.96 | 10.97 | -37.80 | 64.02 | 0.6693 | 716.4 | 654.4 | |
| 0.00 | 1.67 | 0.00 | 1.11 | 11.68 | 11.02 | -37.75 | 64.38 | 0.6673 | 818.0 | 685.7 | |
| 0.00 | 0.61 | 0.00 | 0.41 | 10.90 | 11.03 | -37.75 | 65.47 | 0.6631 | 598.0 | 543.1 | |
| 0.00 | 0.53 | 0.00 | 0.35 | 11.63 | 10.83 | -37.94 | 64.56 | 0.6692 | 761.0 | 741.2 | |
| 0.00 | 1.49 | 0.00 | 1.00 | 11.77 | 10.70 | -38.08 | 64.46 | 0.6715 | 525.0 | 496.6 | |
| 0.00 | 1.41 | 0.00 | 0.93 | 11.00 | 10.82 | -37.96 | 65.44 | 0.6662 | 551.0 | 456.5 | |
| 0.00 | 2.63 | 0.00 | 1.76 | 11.65 | 10.52 | -38.26 | 64.72 | 0.6730 | 653.0 | 545.0 | |
| 0.00 | 0.88 | 0.00 | 0.59 | 11.34 | 10.49 | -38.28 | 65.16 | 0.6717 | 525.0 | 400.7 | |
| 0.00 | 0.35 | 0.00 | 0.23 | 11.57 | 10.34 | -38.44 | 64.93 | 0.6747 | 225.0 | 305.2 | |
| 0.00 | 1.93 | 0.00 | 1.35 | 12.84 | 8.16 | -40.62 | 64.46 | 0.7058 | 675.0 | 569.8 | |
| 0.00 | 1.05 | 0.00 | 0.73 | 9.13 | 6.79 | -41.99 | 70.07 | 0.7049 | 511.0 | 450.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
