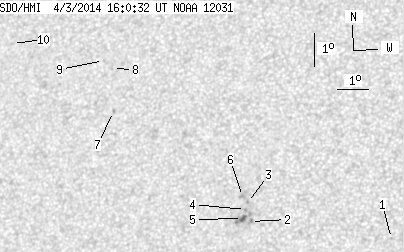

SDO HMI 2014-04-03 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.58 | 19.94 | 0.85 | 10.85 | 4.73 | 27.07 | -21.71 | 63.42 | 0.4138 | -127.3 | -459.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.37 | 2.92 | 32.70 | -16.07 | 60.31 | 0.3197 | 787.0 | 619.2 | |
| 0.00 | 1.93 | 0.00 | 1.04 | 3.60 | 28.23 | -20.55 | 64.56 | 0.3896 | -1083.0 | -908.8 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 4.19 | 28.12 | -20.66 | 63.35 | 0.3954 | -938.0 | -825.9 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 3.98 | 28.06 | -20.72 | 63.90 | 0.3947 | -909.0 | -810.6 | |
| 1.58 | 8.96 | 0.85 | 4.82 | 3.71 | 27.97 | -20.81 | 64.61 | 0.3941 | -1090.6 | -818.2 | |
| 0.00 | 2.55 | 0.00 | 1.37 | 4.38 | 27.95 | -20.82 | 63.11 | 0.3991 | -819.0 | -701.2 | |
| 0.00 | 1.41 | 0.00 | 0.79 | 7.18 | 23.61 | -25.17 | 62.01 | 0.4798 | 787.0 | 615.6 | |
| 0.00 | 0.79 | 0.00 | 0.45 | 8.51 | 23.49 | -25.29 | 59.71 | 0.4913 | 566.0 | 452.2 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 8.78 | 23.16 | -25.61 | 59.56 | 0.4975 | 640.0 | 507.1 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 9.48 | 20.00 | -28.78 | 61.30 | 0.5435 | 642.0 | 513.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
