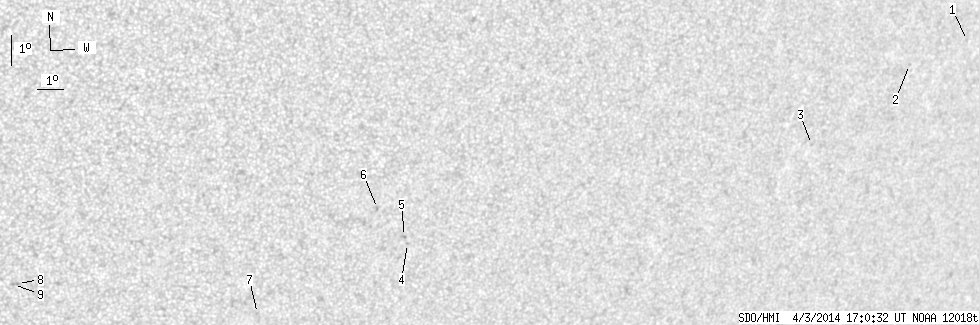

SDO HMI 2014-04-03 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.93 | 0.00 | 6.18 | -27.86 | 77.97 | 29.74 | 226.44 | 0.5944 | -277.1 | -240.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.27 | -21.17 | 97.93 | 49.71 | 247.71 | 0.7710 | 238.0 | 274.2 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -22.12 | 95.52 | 47.30 | 245.93 | 0.7480 | 664.0 | 583.0 | |
| 0.00 | 1.23 | 0.00 | 0.88 | -24.92 | 92.17 | 43.94 | 241.21 | 0.7205 | 161.0 | 267.6 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -29.07 | 76.76 | 28.54 | 226.43 | 0.5785 | -584.0 | -420.4 | |
| 0.00 | 1.67 | 0.00 | 1.01 | -28.85 | 76.58 | 28.35 | 226.58 | 0.5748 | -759.0 | -607.3 | |
| 0.00 | 1.49 | 0.00 | 0.89 | -28.00 | 75.29 | 27.07 | 226.68 | 0.5544 | -799.0 | -692.5 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -31.61 | 71.68 | 23.45 | 218.01 | 0.5526 | -603.0 | -446.3 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -30.91 | 62.62 | 14.40 | 207.05 | 0.4711 | -678.0 | -609.5 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -30.94 | 62.48 | 14.26 | 206.80 | 0.4706 | -134.0 | -164.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
