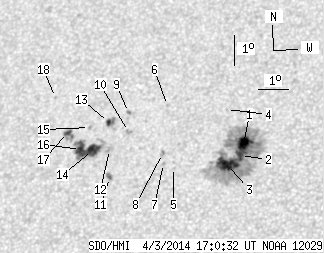

SDO HMI 2014-04-03 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.90 | 270.63 | 34.21 | 153.58 | 16.36 | 29.83 | -18.39 | 38.30 | 0.4894 | -116.9 | -223.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.63 | 201.01 | 5.99 | 113.04 | 16.61 | 31.30 | -16.92 | 35.83 | 0.4784 | -1200.8 | -410.8 | |
| 5.36 | -1.00 | 3.01 | -1.00 | 16.22 | 31.24 | -16.98 | 36.43 | 0.4742 | -1098.2 | 999999 | |
| 17.48 | -1.00 | 9.82 | -1.00 | 15.94 | 30.84 | -17.38 | 37.43 | 0.4746 | -1091.1 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 17.74 | 30.64 | -17.59 | 35.46 | 0.4981 | -651.0 | -499.7 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 15.91 | 29.07 | -19.16 | 40.17 | 0.4912 | -659.0 | -605.4 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 17.95 | 28.65 | -19.57 | 38.11 | 0.5184 | 688.0 | 557.2 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 16.06 | 28.72 | -19.50 | 40.48 | 0.4962 | -753.0 | -587.7 | |
| 0.00 | 2.20 | 0.00 | 1.25 | 16.39 | 28.66 | -19.57 | 40.13 | 0.5005 | -871.0 | -679.0 | |
| 0.00 | 1.84 | 0.00 | 1.07 | 17.78 | 27.36 | -20.86 | 40.10 | 0.5285 | -761.0 | -581.5 | |
| 0.00 | 2.72 | 0.00 | 1.58 | 17.15 | 27.44 | -20.79 | 40.81 | 0.5209 | 935.0 | 733.4 | |
| 0.70 | 3.60 | 0.40 | 2.07 | 15.68 | 26.97 | -21.26 | 43.44 | 0.5097 | 1020.1 | 815.9 | |
| 0.00 | 3.25 | 0.00 | 1.88 | 16.59 | 26.86 | -21.36 | 42.32 | 0.5205 | 576.0 | 420.9 | |
| 2.28 | 7.55 | 1.33 | 4.41 | 17.48 | 26.72 | -21.50 | 41.34 | 0.5314 | 735.4 | 516.4 | |
| 10.89 | 35.92 | 6.33 | 20.93 | 16.58 | 26.29 | -21.93 | 43.08 | 0.5261 | 1118.8 | 683.2 | |
| 0.00 | 1.14 | 0.00 | 0.67 | 17.34 | 26.10 | -22.13 | 42.32 | 0.5361 | 672.0 | 457.7 | |
| 10.19 | -14.00 | 5.94 | -14.00 | 16.64 | 25.88 | -22.34 | 43.54 | 0.5308 | 942.9 | 999999 | |
| 2.37 | 8.34 | 1.39 | 4.90 | 17.21 | 25.37 | -22.86 | 43.41 | 0.5420 | 738.1 | 690.3 | |
| 0.00 | 0.70 | 0.00 | 0.42 | 18.39 | 24.79 | -23.43 | 42.58 | 0.5598 | 634.0 | 536.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
